Araknis Networks AN-810-AP-I-AC Indoor WiFi Access Point 2600Mbps

High-Capacity Wi-Fi for Busy Indoor Networks

The Araknis AN-810-AP-I-AC is a dual-band Wi-Fi 5 access point designed for larger homes, offices, conference rooms, media spaces, and other indoor networks with many active wireless devices.

Part of the Araknis Networks family, it combines 4×4:4 Wave 2 AC wireless, MU-MIMO, Fast Roaming, VLAN support, and OvrC management in a low-profile ceiling or wall-mount design.

AC2600 Dual-Band Wi-Fi 5

• 802.11a/b/g/n/ac Wave 2
• 4×4:4 MU-MIMO
• 2.4GHz PHY rate: up to 800Mbps
• 5GHz PHY rate: up to 1733Mbps
• AC2600 performance class
• Simultaneous 2.4GHz and 5GHz operation
• 20, 40, and 80MHz channel widths
• Beamforming
• Auto Channel Selection

The AC2600 rating represents combined theoretical wireless PHY capacity, not guaranteed internet or real-world throughput. Actual performance depends on client capability, signal conditions, interference, channel width, network equipment, and internet service.

Designed for Higher Device Density

The 4×4:4 Wave 2 platform uses MU-MIMO to communicate with multiple compatible devices more efficiently than older single-user wireless designs. This makes the AN-810-AP-I-AC especially useful where laptops, phones, TVs, streaming devices, and other connected equipment are active at the same time.

Fast Roaming for Multi-AP Networks

Fast Roaming helps compatible wireless devices transition between access points as they move through a property. This makes the AN-810-AP-I-AC useful in larger spaces where multiple wireless access points are used to create broader coverage.

Roaming performance also depends on compatible client devices, AP placement, signal levels, and network configuration.

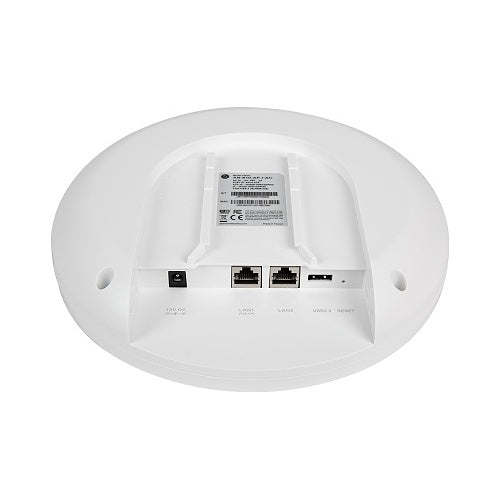

Two Gigabit Ethernet Ports

• 1 × Gigabit Ethernet port with 802.3at PoE+ input
• 1 × Gigabit Ethernet data-only port
• 1 × USB 2.0 power-only port
• RJ45 auto-sensing and auto-negotiation

The second Gigabit Ethernet port can provide a convenient wired network connection near the access point, but it does not provide PoE output.

PoE+ or Optional DC Power

The access point can be powered through its primary Ethernet connection using IEEE 802.3at PoE+, allowing network data and power to travel over the same cable from a compatible PoE switch.

• 802.3at PoE+ input
• Alternative power: 12V DC, 2A
• Power-on consumption: approximately 7.3W
• Full load without USB: approximately 19.1W
• Full load with USB: approximately 21.9W

The optional 12V DC power supply is sold separately.

Multiple SSIDs and VLAN Support

• Up to 8 SSIDs per radio
• Guest network support
• IEEE 802.1Q VLAN support
• Wireless client isolation options
• Wi-Fi scheduling
• MAC address filtering
• Hidden SSID support
• WME 802.11e QoS support

Multiple SSIDs and VLANs can help separate guest Wi-Fi, smart-home devices, AV equipment, work devices, and other network traffic when used with a compatible router and managed network infrastructure.

Wireless Security

• WPA2-PSK
• WPA-Enterprise
• MAC address filtering
• Guest network support

WPA3 is not listed for this model. If WPA3 or Wi-Fi 6 is required, consider a newer model such as the Araknis AN-520-AP-I Wi-Fi 6 access point.

OvrC Remote Management

The AN-810-AP-I-AC is OvrC enabled for compatible cloud-based configuration, monitoring, firmware management, diagnostics, and multi-access-point Wi-Fi management.

The access point also supports local web management, SNMP, system logging, site survey tools, LED control, and scheduled automatic reboot.

Access Point or Repeater Mode

Araknis lists both Access Point and Repeater operating modes. For the most consistent performance and bandwidth, a wired Ethernet connection to the network is generally the preferred configuration.

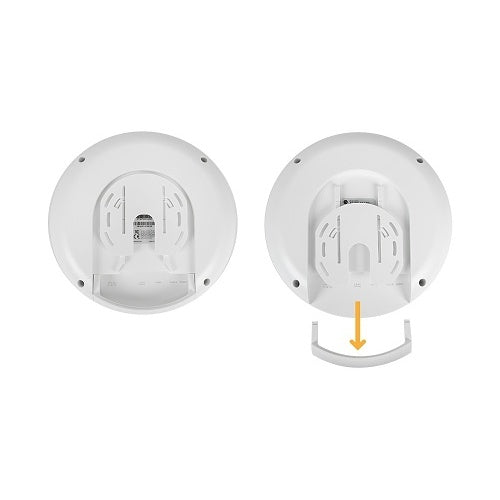

Indoor Ceiling or Wall Mounting

• Indoor use only
• Low-profile circular housing
• Ceiling or wall mounting
• Embedded omnidirectional antennas
• Diffused status LED
• Diameter: 9.25 inches
• Height: 1.91 inches
• Weight: approximately 1.6 lb
• Operating temperature: 32°F to 122°F
• 2-year limited manufacturer warranty

Use appropriate CAT5e or CAT6 Ethernet cabling between the access point and network switch or router.

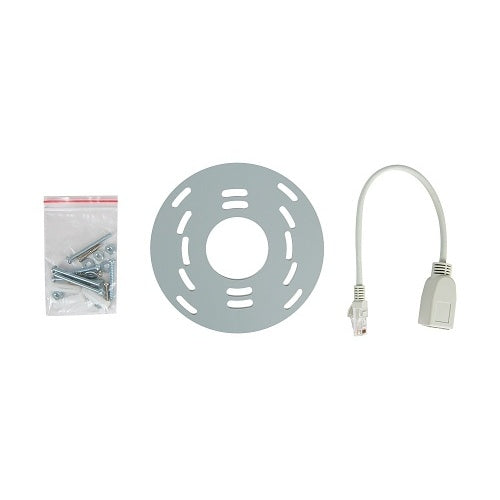

What's Included

• Araknis AN-810-AP-I-AC wireless access point
• Mounting bracket
• Tile ceiling backing plate
• Male-to-female category jumper cable
• Tile ceiling mounting hardware
• Drywall mounting hardware
• Wood-surface mounting hardware
• Quick Start Guide

PoE switch, PoE injector, router, Ethernet cabling, and optional 12V DC power supply are sold separately.

Complete the Network

• Wireless access points
• Network and PoE switches
• Routers

Need Help Confirming Compatibility?

Send Bear Security Shop your router and switch models, internet speed, number of access points, and approximate coverage area. We can help confirm PoE requirements, AP placement, wired connections, and whether this Wi-Fi 5 model or a newer Wi-Fi 6 access point is the better fit.

Is the AN-810-AP-I-AC a Wi-Fi 6 access point?

No. It uses Wi-Fi 5 / 802.11ac Wave 2 technology. Buyers who specifically need Wi-Fi 6 should choose a newer Araknis access point.

What does AC2600 mean?

AC2600 is the wireless performance class. Araknis specifies PHY rates up to 800Mbps on 2.4GHz and 1733Mbps on 5GHz. These are theoretical wireless link rates, not guaranteed internet speeds.

Does it support MU-MIMO?

Yes. The AN-810-AP-I-AC uses a 4×4:4 Wave 2 AC design with MU-MIMO for more efficient communication with multiple compatible wireless clients.

Does it support Fast Roaming?

Yes. Araknis lists Fast Roaming for multi-access-point networks. Actual roaming behavior also depends on the wireless client and network configuration.

How many SSIDs can it support?

It supports up to 8 SSIDs per radio.

Does it support VLANs?

Yes. It supports IEEE 802.1Q VLANs for separating wireless networks when used with compatible network equipment.

Does it support WPA3?

No WPA3 support is listed by Araknis for this model. The documented security options include WPA2-PSK and WPA-Enterprise.

How many Ethernet ports does it have?

It has two Gigabit Ethernet ports. The primary port accepts PoE+ power, while the second port is for network data only.

Does the second Ethernet port provide PoE?

No. Araknis specifies the second Gigabit Ethernet port as data only.

How is the access point powered?

It can be powered using IEEE 802.3at PoE+ or an optional 12V DC, 2A power supply.

Is the 12V power supply included?

No. Araknis instructs buyers to order the compatible 12V power supply separately when DC power is required.

Can it operate as a wireless repeater?

Yes. Araknis lists both Access Point and Repeater modes. A wired Ethernet connection is generally preferred when maximum performance is required.

Can it be installed outdoors?

No. The AN-810-AP-I-AC is designed for indoor use only.

Does it work with OvrC?

Yes. It is OvrC enabled for compatible remote configuration, monitoring, troubleshooting, and Wi-Fi management.
