WattBox WB-900CH-SEC-IPVM-8 8-Outlet IP Power Conditioner

Premium Managed Power in a Space-Saving 1U Design

The WattBox WB-900CH-SEC-IPVM-8 is a premium 1U IP power conditioner designed for AV racks, network closets, NVR systems, automation equipment, and business-critical electronics that need reliable protection, outlet-level visibility, and remote troubleshooting.

It combines eight individually controlled and metered outlets with non-sacrificial Surge Elimination Circuit protection, Safe Voltage monitoring, OvrC remote management, historical Power Insights, configurable alerts, power sequencing, API integration, and a full-color front-panel display.

Best Use Cases

• Compact AV racks: Manage receivers, processors, streamers, control systems, media equipment, and suitable supporting devices without using more than 1U of rack space.
• Network closets: Remotely monitor and reboot routers, switches, modems, firewalls, access points, and network controllers.
• Security systems: Helps manage NVRs, PoE switches, routers, monitors, storage devices, and surveillance support equipment.
• Smart home systems: Useful for automation processors, hubs, bridges, controllers, and connected network gear.
• Small business equipment rooms: Supports proactive monitoring and remote troubleshooting where system downtime can interrupt operations.
• Multi-site installations: OvrC alerts, historical power data, remote outlet control, and API support help simplify management across multiple locations.

Who Should Buy This?

This is a strong choice if you need premium rack protection and remote outlet control but want to preserve rack space. It is especially useful when eight managed outlets are enough and direct front-panel control is important.

It makes sense when you need to remotely reboot one device without interrupting the entire rack, measure the power usage of each outlet, review historical consumption, configure startup sequences, receive abnormal-power alerts, and perform local troubleshooting directly from the rack.

Who Should Not Buy This?

This is more power management than most simple TV, desktop, or one-device installations require. A compact WattBox surge protector or smaller IP power product may be more economical for basic setups.

This product also does not contain a battery. It will not keep connected equipment operating during an outage unless it is paired with a compatible WattBox OvrC UPS battery pack.

If you need more than eight managed outlets, consider the 12-outlet WattBox 900 Series model. If you only need basic outlet distribution without surge protection, remote control, or metering, a rack power strip may be sufficient.

Do not connect heaters, appliances, laser printers, power tools, or other unsuitable high-draw equipment. Confirm the complete connected load before installation.

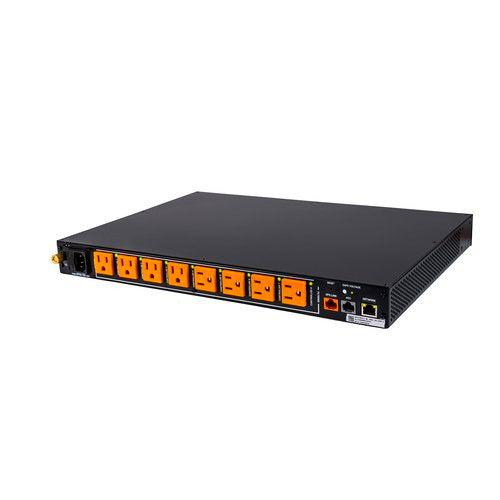

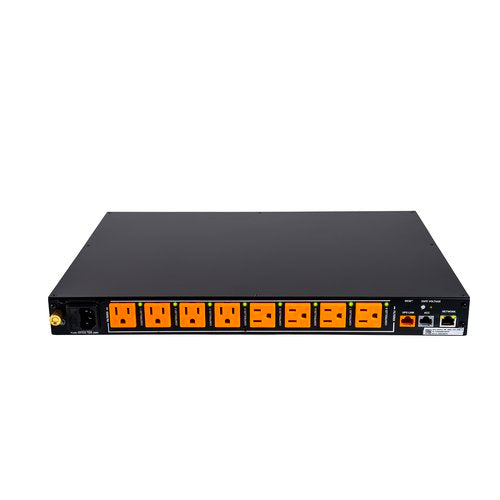

Eight Individually Controlled Outlets

Each of the eight rear outlets can be controlled independently. This allows an authorized user or integrator to restart one locked-up device without shutting down every component connected to the power conditioner.

Outlet names, power actions, schedules, startup delays, and recovery behavior can be configured to make the rack easier to manage and troubleshoot.

Individual Outlet and Whole-Device Metering

The WB-900CH-SEC-IPVM-8 provides individual outlet metering and whole-device power metering. This helps users see how much power each connected device is consuming and how the complete rack load changes over time.

Configurable voltage, current, and power thresholds can generate alerts when connected equipment begins behaving outside its expected range.

Power Insights Dashboard

The OvrC Power Insights Dashboard adds historical outlet-level consumption data. Instead of only seeing what a device is drawing at the current moment, authorized users can review how its power usage changes over time.

This can help identify a device that unexpectedly stops drawing power, begins consuming abnormal current, or develops a pattern that may indicate an equipment or configuration problem.

Non-Sacrificial SEC Protection

The WB-900CH-SEC-IPVM-8 uses Surge Elimination Circuit technology for non-sacrificial line-to-neutral surge protection. It is designed to maintain consistent protection through repeated surge events rather than gradually losing protection after each event.

The complete surge-protection design includes line-to-neutral, line-to-ground, and neutral-to-ground protection paths, with SEC and MOV-based protection technologies used according to the circuit design.

Safe Voltage Monitoring

Safe Voltage monitors incoming electrical conditions and helps protect connected equipment from sustained voltage outside the supported operating range.

The published Safe Voltage range is 90V to 136V. Configurable alerts and thresholds can also provide earlier visibility into recurring or unstable electrical conditions.

Full-Color Front-Panel Control

The built-in color display and d-pad allow users to cycle through all eight managed outlets, review outlet status, turn off or reset individual outlets, and perform a full-unit reset without opening a browser or using a computer.

Front LED indicators provide at-a-glance status for internet connectivity, Safe Voltage, surge protection, and grounding.

A front accessory outlet also provides convenient temporary power access during installation or service without disturbing the rear rack connections.

OvrC Remote Management

The WB-900CH-SEC-IPVM-8 integrates with OvrC for remote outlet control, scheduled reboots, automated recovery, configurable alerts, firmware management, diagnostics, and system-health visibility.

OvrC does not require recurring subscription or licensing fees for the supported WattBox management features.

OvrC Connect Customer Access

OvrC Connect can provide approved customer-facing controls through a mobile app. Customers can be given access to selected device reboots and predefined macros without receiving access to the full professional management interface.

The installer or system administrator determines which controls are available to the customer.

Compatibility and Technical Notes

• Product type: 1U IP-controlled and metered rack power conditioner.
• Managed outlets: 8 NEMA 5-15R outlets.
• Outlet control: All eight managed outlets are individually IP controllable.
• Power metering: Individual outlet and whole-device metering.
• Front interface: Full-color display, d-pad controls, local outlet actions, reset-all function, and status LEDs.
• Front accessory outlet: Provides convenient quick-connect power access during installation or service.
• Surge technology: Non-sacrificial SEC protection on the line-to-neutral path with MOV protection included in the overall design.
• Protection modes: Line-neutral, line-ground, and neutral-ground.
• Peak impulse current: 135,000A.
• Safe Voltage range: 90V to 136V.
• EMI/RFI filtration: One filter bank serving all eight managed outlets.
• Line voltage: 120V, 50/60Hz.
• UL current rating: 12A.
• UL power rating: 1500W.
• Fuse rating: 15A.
• Fuse type: Fast-acting ceramic tube fuse.
• AC input: IEC C-14 input with integrated fuse holder.

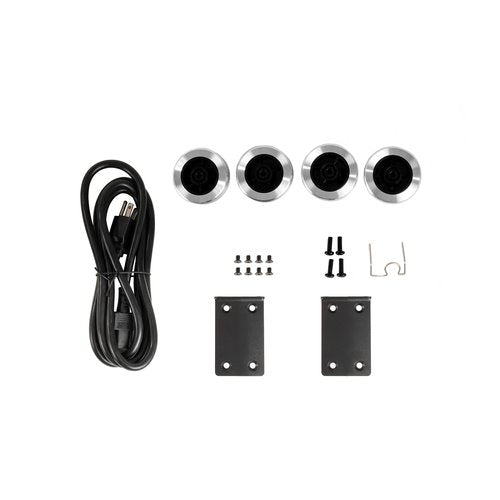

• Power cord: Locking, detachable 6.6-foot 14AWG C13 power cord.
• API support: Yes.
• Control integration: Supports compatible IP and Telnet API integrations.
• Rack spacing: 1U.
• Dimensions: Approximately 17.32 inches wide, 12.99 inches deep, and 1.71 inches high.
• UPS integration: Supports compatible WattBox OvrC UPS battery packs.
• Warranty: Six-year limited manufacturer warranty, subject to the official warranty terms.

Control-System and API Integration

The WattBox 900 Series supports compatible control-platform integration through IP and Telnet APIs. Published platform examples include Control4, Crestron, Q-SYS, RTI, Elan, and URC.

API access can also support custom monitoring and automation workflows for appropriate residential, commercial, and multi-site installations.

Optional UPS Integration

The WB-900CH-SEC-IPVM-8 does not provide battery runtime by itself. Pair it with a compatible WattBox OvrC UPS battery pack when selected rack devices need to remain powered during an outage.

A correctly integrated UPS setup can add battery-health alerts, on-battery notifications, remote alarm silencing, runtime visibility, and smart load shedding through OvrC.

Installation Considerations

Before ordering, calculate the total wattage of every connected device. The official UL ratings are 12A and 1500W, so the full rack load must remain within both limits.

Leave reasonable operating headroom rather than continuously loading the power conditioner to its maximum rating. Headroom helps account for normal changes in equipment consumption, startup behavior, and future devices.

Plan the power-on sequence before connecting the equipment. Core network devices such as the modem, router, firewall, and main switch should usually start before dependent equipment such as NVRs, automation processors, streamers, and control systems.

Connect the network port to the local router or switch for IP control and OvrC access. When adding a compatible WattBox UPS, follow the official WattBox UPS Link and installation instructions.

Why Choose the 8-Outlet 1U Model?

Choose the WB-900CH-SEC-IPVM-8 when eight managed outlets are sufficient and preserving rack space is a priority. Its 1U chassis also adds direct front-panel control, making it easier to inspect and reset equipment while standing at the rack.

Choose a larger 12-outlet model when the system needs additional managed outlets and the rack has enough space for the larger chassis.

Good Products to Pair With This Power Conditioner

• WattBox Power Solutions for compatible UPS units, power conditioners, surge protection, and accessories.
• Smart Power Conditioners to compare other remotely managed WattBox power options.
• UPS Battery Backup when connected equipment must remain powered during outages.
• Power Management Solutions for broader surge protection, UPS, and rack-power planning.
• Network Switches for wired and PoE network installations.
• Network Recorders NVRs for surveillance recording systems.
• Rack-Mount Power Strips & PDU for additional rack power-distribution options.

Need Help Planning Your Rack Power?

Send us the model numbers or wattage of the devices in your rack, along with your UPS and remote-management requirements. We can help confirm load capacity, outlet count, sequencing, UPS compatibility, rack depth, and whether this 8-outlet 1U model or a larger WattBox power conditioner is the better fit.

What is the WattBox WB-900CH-SEC-IPVM-8 used for?

It provides managed power protection, individual outlet control, outlet-level metering, remote rebooting, historical power insights, and OvrC monitoring for AV, networking, security, automation, and business equipment.

How many managed outlets does it have?

It includes eight NEMA 5-15R outlets that can be controlled and metered individually.

Can each outlet be controlled separately?

Yes. Each of the eight managed outlets can be turned off, powered on, or rebooted without interrupting the other connected devices.

Can each outlet be metered separately?

Yes. It provides individual outlet metering as well as whole-device power metering.

Can I control the outlets without using OvrC?

Yes. The full-color front display and d-pad allow local users to cycle through the eight managed outlets and perform supported power actions directly from the rack.

What does the front display show?

The front interface provides outlet status and local power controls. LED indicators also show internet connectivity, Safe Voltage, surge-protection, and grounding status.

Does it have a front accessory outlet?

Yes. A front accessory outlet provides convenient temporary power access during installation, setup, or service work.

What is SEC surge protection?

SEC stands for Surge Elimination Circuit. This model uses non-sacrificial SEC protection on the line-to-neutral path, helping maintain consistent protection through repeated surge events.

Does it also protect line-to-ground and neutral-to-ground?

Yes. The official specifications list line-neutral, line-ground, and neutral-ground protection modes. The non-sacrificial SEC designation applies specifically to the line-to-neutral path.

Does it have a conventional joule rating?

WattBox positions this model around non-sacrificial SEC protection rather than comparing it only by a traditional sacrificial joule rating.

What is Safe Voltage?

Safe Voltage monitors incoming electrical conditions. The published Safe Voltage range is 90V to 136V, helping protect connected equipment from sustained voltage outside that range.

Does it provide battery backup?

No. It does not contain an internal battery. Pair it with a compatible WattBox OvrC UPS battery pack when connected equipment needs runtime during an outage.

What UPS features are available when paired correctly?

A compatible WattBox UPS setup can provide battery-health alerts, estimated runtime, on-battery notifications, remote alarm silencing, and smart load shedding through OvrC.

What is OvrC?

OvrC is a remote management platform for compatible power, networking, AV, automation, and surveillance products. It can provide monitoring, alerts, outlet control, scheduling, diagnostics, and firmware-management functions.

Does OvrC require a subscription?

WattBox states that the supported OvrC management features do not require recurring subscription or licensing fees.

What is the Power Insights Dashboard?

Power Insights provides historical power-consumption data for individual outlets. It can help identify devices that stop drawing power, consume abnormal current, or change their normal operating pattern.

Does it support automated rebooting?

Yes. Compatible OvrC configurations can monitor connectivity and automatically reboot selected equipment when configured recovery conditions are met.

Can outlets be scheduled or sequenced?

Yes. Supported OvrC features include outlet schedules, startup delays, sequencing, and automated recovery behavior.

Does it support control-system integration?

Yes. The WattBox 900 Series supports compatible integrations through IP and Telnet APIs. Published examples include Control4, Crestron, Q-SYS, RTI, Elan, and URC.

What is the maximum supported load?

The official UL ratings are 12A and 1500W. The total connected equipment must remain within both limits, with additional operating headroom recommended.

Is this a 15A power conditioner?

It has a 15A fuse, but its published UL current rating is 12A. Use the 12A and 1500W ratings when planning the connected load.

How much rack space does it require?

It requires 1U of rack space and measures approximately 1.71 inches high.

How deep is the chassis?

The chassis is approximately 12.99 inches deep. Allow additional space for the locking power cord, network cable, UPS Link connection, and connected equipment plugs.

Does it include a detachable power cord?

Yes. It includes a locking and detachable 6.6-foot 14AWG C13 power cord.

What should I check before ordering?

Check the number of devices, total connected wattage, 12A current limit, available 1U rack space, rack depth, network connection, outlet sequence, adapter spacing, UPS needs, and which devices require remote rebooting or historical power monitoring.
