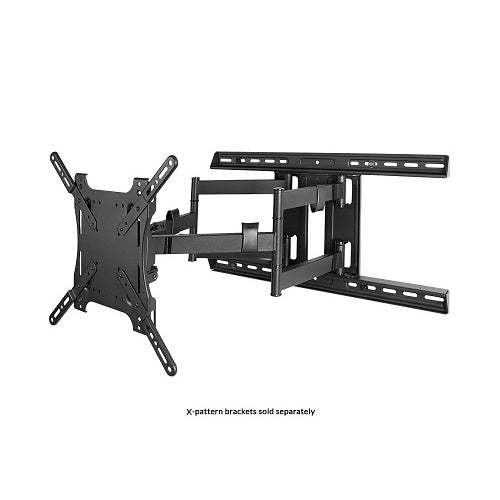

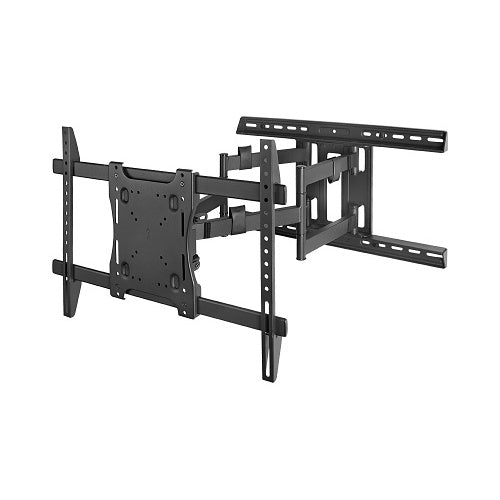

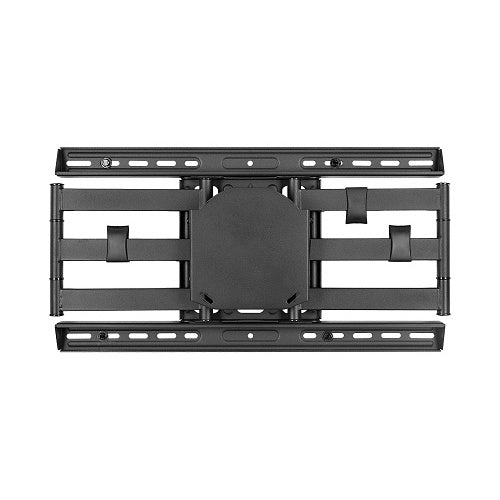

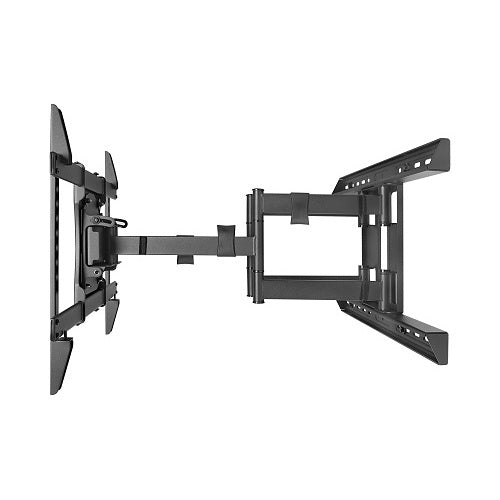

Strong SM-CB-ART2-L Full Motion Arm TV Wall Mount 40–80 Inch

Flexible Full-Motion Mounting for Larger TVs

The Strong SM-CB-ART2-L Carbon Series is a dual-arm full-motion TV wall mount for 40 to 80 inch displays weighing up to 150 lb. It works well in living rooms, media rooms, offices, and other spaces where the screen needs to extend, swivel, or tilt for a better viewing angle.

Browse more Strong mounting solutions if you are comparing fixed, tilt, and articulating options.

Full-Motion Adjustment

• Maximum extension: 23 inches
• Retracted depth: approximately 3.43 inches from the wall
• Swivel range: up to 180°
• Tilt range: +15° / -5°
• Post-install roll adjustment: ±5°

The articulating arms make it easier to turn the TV toward different seating areas, reduce glare with tilt adjustment, or pull the display forward for access to cables and connections.

TV Size, Weight, and VESA Compatibility

• Display size: 40 to 80 inches
• Maximum load: 150 lb / 68.04 kg
• VESA compatibility: supported patterns up to 600 × 400
• UL Certified

TV size alone does not confirm compatibility. Before ordering, verify your television's weight and exact VESA mounting pattern against the supported Strong specifications.

Installation and Cable Management

• Dual-arm construction
• Wide wall plate with multiple mounting positions
• Mounting template included
• 3 integrated cable management clips
• TV mounting hardware included

The mount supports installation to suitable wood-stud or concrete structures according to the Strong installation manual. The wall structure and mounting hardware must support the combined weight of the mount and television, and Strong specifies a minimum of two people for installation.

For the finished AV setup, pair the mount with appropriate HDMI cables while allowing enough cable slack for the full range of articulation.

When to Choose a Different Mount

If the TV will always remain flat against the wall and does not need to move, a fixed option such as the Strong SM-CB-F-L can provide a simpler, lower-profile installation.

If the screen will be mounted higher but does not need to swivel or extend, compare other TV wall mounts for tilt-style options.

Warranty

Strong lists the SM-CB-ART2-L with a Limited Lifetime Warranty.

For TVs, streaming equipment, AV receivers, and other connected electronics, consider an appropriate power management solution for surge and power protection.

Complete the TV Setup

• TV wall mounts
• HDMI cables
• Power management

Need Help Confirming Compatibility?

Send Bear Security Shop your TV model, screen size, weight, VESA pattern, and wall type. We can help confirm whether the SM-CB-ART2-L is the right mount before you order.

What TV sizes does the SM-CB-ART2-L support?

Strong specifies the mount for 40 to 80 inch displays weighing up to 150 lb. The exact VESA pattern must also be compatible.

How far does the mount extend from the wall?

Strong's current product specification lists a maximum extension of 23 inches and a retracted depth of approximately 3.43 inches.

How much can the TV swivel and tilt?

The mount swivels up to 180° and the manufacturer specification lists a +15° / -5° tilt range.

What VESA patterns does it support?

It supports multiple VESA patterns up to 600 × 400. Confirm your exact TV mounting pattern before ordering.

Can I level the TV after installation?

Yes. The mount provides ±5° of roll adjustment for post-install leveling.

Is the SM-CB-ART2-L UL certified?

Yes. Strong lists the mount as UL Certified with a maximum supported display weight of 150 lb.
