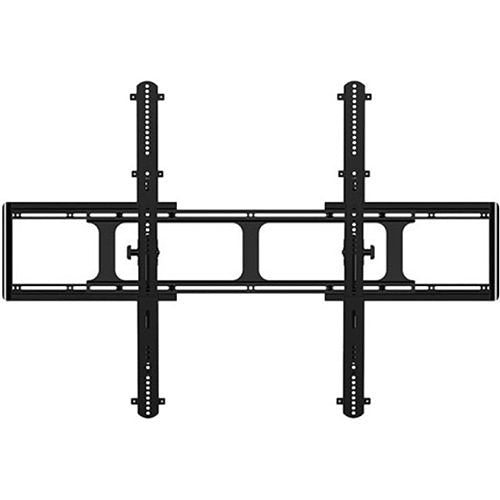

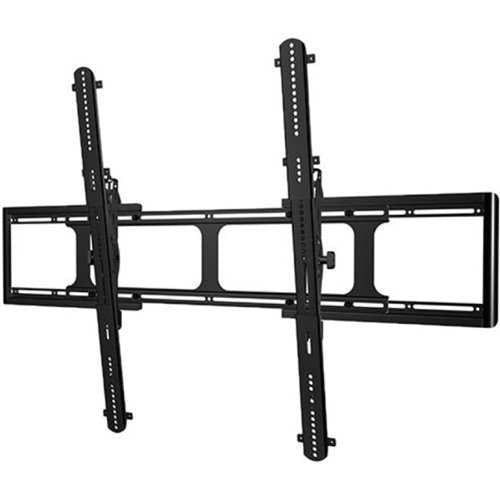

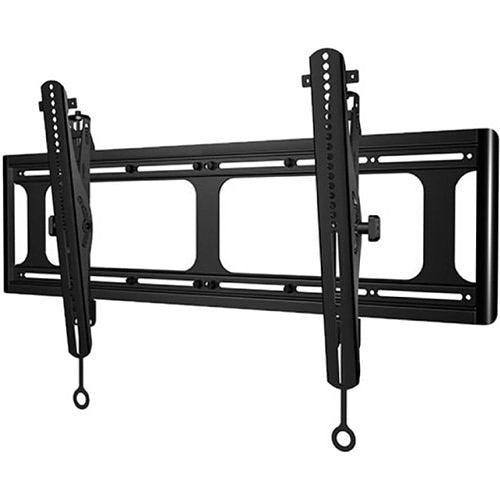

Sanus VXT7-B2 Tilting TV Wall Mount 37–110 Inch Heavy-Duty

Heavy-Duty Tilting Mount for Extra-Large TVs

The SANUS VXT7-B2 is a heavy-duty tilting TV wall mount designed for compatible 65" to 140" televisions weighing up to 300 lb. Its expandable wall plate, wide mounting-pattern support, and high weight capacity make it a strong choice for today's extra-large displays.

The mount keeps the television approximately 2.5" from the wall while providing smooth fingertip tilt, post-installation height and leveling adjustment, and easier access to cables behind the screen.

Key Specifications

• Model: VXT7-B2
• Mount type: Heavy-duty tilting TV wall mount
• Compatible TV size: 65"–140"
• Maximum TV weight: 300 lb (136 kg)
• Tilt range: +7° upward / -10° downward
• Wall profile: Approximately 2.5"
• VESA / mounting patterns: Approximately 200 × 200 through 1100 × 800 mm
• Adjustment: Virtual Axis fingertip tilt and ProSet Plus post-install adjustment
• Wall plate: Expandable design for extra-large TVs
• Finish: Black
• Safety: UL Certified

Who Should Choose the VXT7-B2?

Choose the VXT7-B2 when you have an extra-large, heavy television and want a secure wall-mounted installation with vertical viewing-angle adjustment rather than a full-motion arm.

It is especially useful for oversized TVs mounted above normal eye level, where downward tilt can improve the viewing angle and help reduce reflections from windows or room lighting.

Supports TVs Up to 140 Inches

SANUS has tested the VXT7 for compatible televisions from 65" to 140". Because TV dimensions and mounting patterns vary significantly at these sizes, screen size alone does not guarantee compatibility.

Always verify your exact TV model, total weight, mounting-hole pattern, and rear-panel configuration before installation.

Heavy-Duty 300 lb Capacity

The VXT7-B2 is rated for compatible televisions weighing up to 300 lb (136 kg), making it suitable for many extra-large and heavier displays.

Do not exceed the manufacturer's stated weight capacity, including accessories attached directly to the television.

Virtual Axis Fingertip Tilt

SANUS Virtual Axis technology allows smooth manual adjustment of the television's viewing angle.

The VXT7-B2 provides approximately 7° of upward tilt and 10° of downward tilt, making it easier to optimize the screen angle when the television is mounted above eye level.

Low-Profile 2.5-Inch Depth

Despite its heavy-duty construction, the VXT7-B2 positions a compatible television approximately 2.5" from the wall for a clean installation.

The tilt mechanism also provides easier access to HDMI, power, Ethernet, and other connections behind the television.

ProSet Plus Post-Installation Adjustment

SANUS ProSet Plus technology provides up to approximately one inch of post-installation height and leveling adjustment.

This helps correct small positioning or leveling differences after the television has already been mounted.

Expandable Wall Plate

The VXT7-B2 uses an expandable wall-plate design to accommodate the wide mounting patterns found on many extra-large televisions.

This flexibility is particularly important for 85", 98", 100", and larger displays, where mounting-hole spacing can be significantly wider than on conventional TVs.

Wide VESA Compatibility

The VXT7-B2 supports mounting patterns from approximately 200 × 200 mm through 1100 × 800 mm.

Always check your exact television's mounting pattern before ordering. A compatible screen size and weight do not automatically guarantee that the mounting holes will align.

Tilting Rather Than Full Motion

The VXT7-B2 provides vertical tilt but does not use an extending or swiveling full-motion arm.

This makes it a good choice when you want an extra-large TV mounted relatively close to the wall and do not need significant side-to-side viewing-angle adjustment.

Before Ordering

• Confirm the exact TV model number
• Confirm the television is within the 65"–140" recommended size range
• Confirm total TV weight does not exceed 300 lb
• Verify the mounting pattern is compatible with the VXT7-B2
• Check rear cable and connector clearance
• Confirm the wall structure can safely support the TV and mount

Complete Your TV Setup

• SANUS Mounts & Accessories
• TV Wall Mounts
• HDMI Cables

Need Help Checking TV Compatibility?

Send Bear Security Shop your exact TV model number and wall type. We can help confirm screen size, weight, VESA pattern, and whether the SANUS VXT7-B2 is compatible with your television.

What size TVs fit the SANUS VXT7-B2?

SANUS currently specifies the VXT7-B2 for compatible TVs from 65" to 140". TV weight and mounting pattern must also be within the mount's limits.

What is the maximum weight capacity?

The VXT7-B2 supports compatible televisions weighing up to 300 lb (136 kg).

How much does the VXT7-B2 tilt?

The mount provides approximately 7° of upward tilt and 10° of downward tilt.

How far does the TV sit from the wall?

The VXT7-B2 positions a compatible television approximately 2.5" from the wall.

What VESA patterns does the VXT7-B2 support?

SANUS lists mounting-pattern compatibility from approximately 200 × 200 through 1100 × 800 mm. Always verify your exact TV model before ordering.

Can I adjust the TV after it is mounted?

Yes. ProSet Plus provides post-installation height and leveling adjustment to help fine-tune the television's final position.

What is Virtual Axis?

Virtual Axis is SANUS's fingertip tilt system, designed to make vertical viewing-angle adjustment smooth and easy.

Does the VXT7-B2 swivel?

No. The VXT7-B2 is a tilting wall mount rather than a full-motion mount. It does not use an extending swivel arm.

Is the wall plate adjustable?

Yes. The VXT7-B2 uses an expandable wall plate designed to accommodate the wider mounting patterns found on many extra-large TVs.

Can I use the VXT7-B2 with a 98-inch or 100-inch TV?

Potentially, yes. SANUS currently approves the VXT7 for compatible TVs up to 140", but the exact TV weight and mounting pattern must also be within the mount's specifications.

Is the SANUS VXT7-B2 UL Certified?

Yes. SANUS lists the VXT7 as safety tested and UL Certified.
