Sanus VIWLF128-B2 In-Wall Full Motion TV Wall Mount 42–85 Inch

In-Wall Full-Motion Mount with Hidden AV Storage

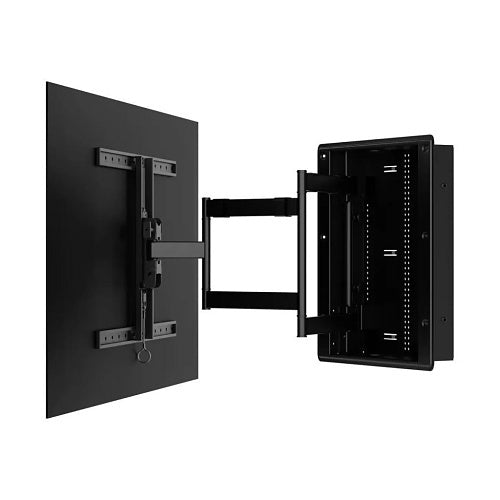

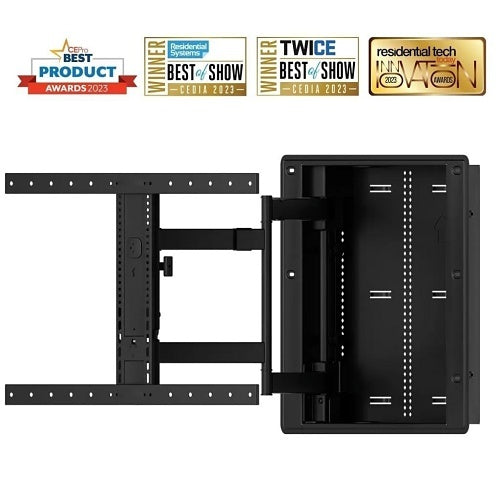

The SANUS VIWLF128-B2 is a premium in-wall full-motion TV wall mount designed for compatible 42" to 85" televisions weighing up to 135 lb. Its recessed design allows the TV to sit approximately 0.5" from the wall while still providing up to 28" of extension, wide swivel, and tilt adjustment.

The mount arms fold into a recessed 20" enclosure that can also provide concealed space for compatible streaming devices, network gear, and other compact AV components.

Key Specifications

• Model: VIWLF128-B2
• Mount type: In-wall full-motion TV wall mount
• Compatible TV size: 42"–85"
• Maximum TV weight: 135 lb (61.2 kg), including accessories
• Extension: Up to approximately 28"
• Swivel: Up to 67° left / 67° right
• Tilt: Approximately 4° upward / 10° downward
• Recessed wall profile: Approximately 0.5"
• VESA compatibility: 100 × 100 through 600 × 400 mm
• In-wall enclosure: Approximately 20" with AV component storage space
• Required wall construction: Wood studs at 16" on center

Who Should Choose the VIWLF128-B2?

Choose the VIWLF128-B2 when you want the flexibility of a full-motion TV mount without the bulky appearance of a conventional articulating arm when the TV is pushed back against the wall.

It is particularly useful for living rooms, media rooms, and design-focused installations where hidden cables and concealed streaming or network devices are important.

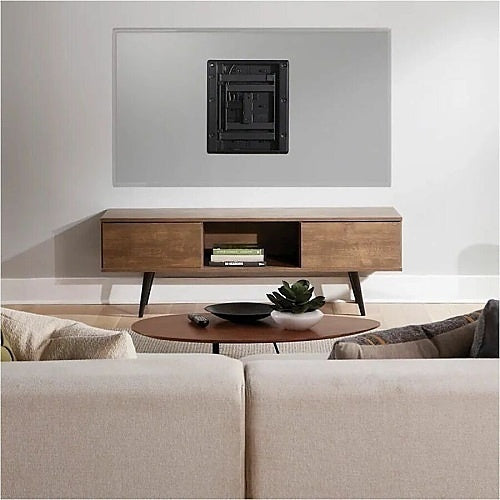

Near-Flush 0.5-Inch Recessed Profile

Because the articulating arms fold into the recessed wall box, the TV can sit approximately 0.5" from the wall when retracted.

This provides a much cleaner appearance than a typical surface-mounted full-motion bracket while still preserving substantial movement when needed.

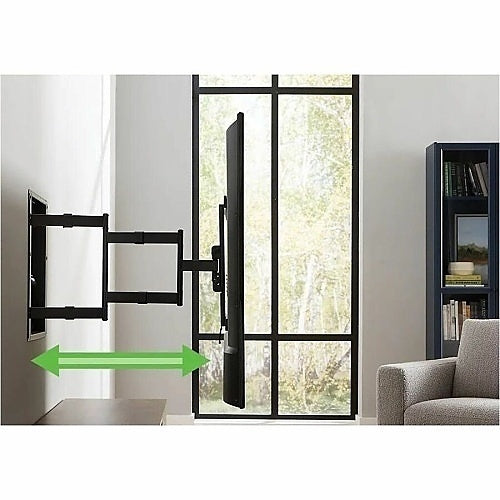

28 Inches of Extension

The VIWLF128-B2 extends up to approximately 28" from the wall, providing greater flexibility for changing viewing positions or accessing the rear of the television.

The long extension also helps larger TVs achieve a wider usable swivel range.

Up to 67° Swivel Left and Right

The mount provides up to 67° of swivel in either direction, depending on the television's size and width.

This can help improve viewing angles from different seating positions in wider rooms.

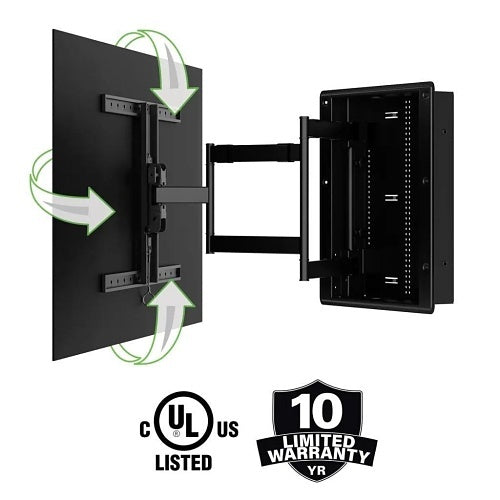

Virtual Axis Tilt Adjustment

SANUS Virtual Axis technology provides fingertip tilt adjustment of approximately 4° upward and 10° downward.

This can help fine-tune viewing angles and reduce reflections from windows or room lighting.

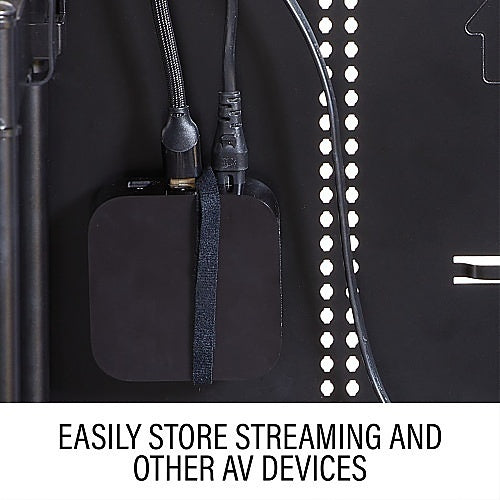

Built-In 20-Inch AV Storage

The recessed enclosure can double as concealed storage for compatible streaming devices, network switches, and other compact AV components.

Six attachment locations with included hook-and-loop fastening help secure devices inside the enclosure.

Power and Cable Management

The enclosure includes knockouts for adding power and routing AV cabling. The electrical outlet itself is not included.

Any in-wall electrical installation should comply with applicable electrical and building codes.

Wide VESA Compatibility

The VIWLF128-B2 supports common mounting patterns from 100 × 100 mm through 600 × 400 mm.

Screen size alone does not guarantee compatibility. Always confirm the exact TV weight, VESA pattern, and rear mounting configuration before ordering.

Supports TVs Up to 135 Pounds

SANUS rates the VIWLF128-B2 for televisions weighing up to 135 lb (61.2 kg), including accessories attached directly to the television.

Do not exceed the manufacturer's stated weight capacity.

Requires 16-Inch On-Center Wood Studs

The recessed enclosure is designed to fit between two wood studs spaced 16" on center.

SANUS specifically states that the mount should not be installed into drywall alone. Confirm the wall construction before ordering because this in-wall design has more specific installation requirements than a conventional surface-mounted TV bracket.

Professional In-Wall Installation

SANUS recommends that installation involving in-wall technology equipment be completed by a professional electrical contractor or low-voltage technician.

This is especially important when adding in-wall power, routing cables, or modifying the wall cavity.

Before Ordering

• Confirm TV size is between 42" and 85"
• Confirm total TV weight does not exceed 135 lb
• Verify VESA pattern is between 100 × 100 and 600 × 400 mm
• Confirm two suitable wood studs spaced 16" on center
• Verify the wall cavity is clear for the recessed enclosure
• Plan in-wall power and AV cabling before installation

Complete Your TV Setup

• SANUS Mounts & Accessories
• TV Wall Mounts
• HDMI Cables

Need Help Checking TV Compatibility?

Send Bear Security Shop your exact TV model number and wall construction. We can help confirm screen size, weight, VESA pattern, stud requirements, and whether the SANUS VIWLF128-B2 is compatible with your installation.

What size TVs fit the SANUS VIWLF128-B2?

SANUS specifies the VIWLF128-B2 for compatible TVs from 42" to 85". Weight and VESA pattern must also remain within the mount's limits.

What is the maximum TV weight?

The VIWLF128-B2 supports televisions weighing up to 135 lb (61.2 kg), including accessories attached to the TV.

How far does the VIWLF128-B2 extend?

The mount extends up to approximately 28" from the wall.

How much does it swivel?

SANUS specifies up to 67° of swivel to the left and 67° to the right. Actual usable swivel depends on the TV's width.

How much does the TV tilt?

The VIWLF128-B2 provides approximately 4° of upward tilt and 10° of downward tilt.

How close does the TV sit to the wall?

When recessed and fully retracted, the TV can sit approximately 0.5" from the wall.

What VESA patterns does the VIWLF128-B2 support?

SANUS specifies mounting-pattern compatibility from 100 × 100 through 600 × 400 mm.

Can the mount hide streaming devices?

Yes. The recessed 20" enclosure can provide hidden storage for compatible streaming devices, small network switches, and similar compact AV components.

Does it include an electrical outlet?

No. The enclosure includes knockouts for adding power, but the electrical outlet is not included.

What wall construction is required?

The VIWLF128-B2 is designed for installation between two wood studs spaced 16" on center.

Can I install it directly into drywall?

No. SANUS specifically states that the mount must not be installed into drywall alone.

Does SANUS recommend professional installation?

Yes. SANUS states that installation involving in-wall technology equipment should be completed by a professional electrical contractor or low-voltage technician.
