Pure Resonance Audio S8.1 IP65 8 Inch 70V Surface Mount Speaker

Fuller Outdoor Sound from an 8-Inch Surface-Mount Speaker

The Pure Resonance Audio S8.1 is a 2-way all-weather surface-mount loudspeaker designed for background music, foreground music, paging, and general-purpose audio in indoor or outdoor spaces. Its 8" graphite woofer, 1.1" silk soft-dome tweeter, and OBE bass-enhancement radiator are designed to provide fuller low-frequency response than many smaller commercial surface-mount speakers.

The S8.1 supports 70V and 100V distributed-audio systems and also includes an 8-ohm bypass for compatible low-impedance amplifiers.

Key Specifications

• Product type: Passive 2-way indoor/outdoor surface-mount speaker
• Sold as: Single speaker
• Woofer: 8" graphite
• Tweeter: 1.1" silk soft dome
• Power handling: 50W RMS / 150W peak
• Frequency response: 60Hz–20kHz (±10dB)
• Sensitivity: 90dB at 1W/1m
• Maximum SPL: 102dB
• Dispersion: 81° horizontal × 87° vertical
• 70V taps: 3.12W, 6.25W, 12.5W, 25W
• 100V taps: 6.25W, 12.5W, 25W, 50W
• Low-impedance mode: 8-ohm bypass
• Weather protection: IP65 when properly installed
• Connection: 4-pin Euroblock screw terminal

Who Should Choose the S8.1?

Choose the S8.1 when you want a larger surface-mount speaker for patios, restaurants, gyms, schools, retail spaces, hospitality areas, or larger residential outdoor zones where stronger bass and fuller music playback matter.

Its 70V/100V transformer makes it suitable for distributed-audio layouts, while the 8-ohm bypass also allows use with compatible conventional amplifiers.

8-Inch Graphite Woofer with OBE Bass Enhancement

The S8.1 uses an 8" graphite woofer together with Pure Resonance Audio's OBE (Optimal Bass Enhancement) radiator technology to extend low-frequency response and provide fuller sound from the surface-mount enclosure.

Pure Resonance Audio specifies a frequency response of 60Hz–20kHz and 90dB sensitivity.

1.1-Inch Silk Soft-Dome Tweeter

A 1.1" silk soft-dome tweeter handles high-frequency reproduction for music, speech, and paging applications.

50W RMS Power Handling

Pure Resonance Audio specifies 50W RMS and 150W peak power handling.

These are speaker power-handling ratings. The S8.1 is passive and requires a compatible amplifier.

70V and 100V Distributed-Audio Compatibility

The built-in transformer provides selectable taps for constant-voltage systems:

• 70V: 3.12W, 6.25W, 12.5W, or 25W
• 100V: 6.25W, 12.5W, 25W, or 50W

When using multiple speakers on a 70V or 100V amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

8-Ohm Bypass

The S8.1 also supports 8-ohm operation for compatible low-impedance amplifiers. Confirm amplifier power, speaker quantity, and total impedance before using bypass mode.

IP65 Weather Protection

The UV-resistant ABS enclosure is rated IP65 when the rear cover is installed and the speaker is mounted correctly. This provides protection against dust and water exposure for suitable outdoor applications.

IP65 does not mean the speaker is designed for submersion.

81° × 87° Coverage

The S8.1 provides an 81° horizontal × 87° vertical dispersion pattern. Actual coverage depends on mounting height, aiming, listening distance, environmental noise, and speaker spacing.

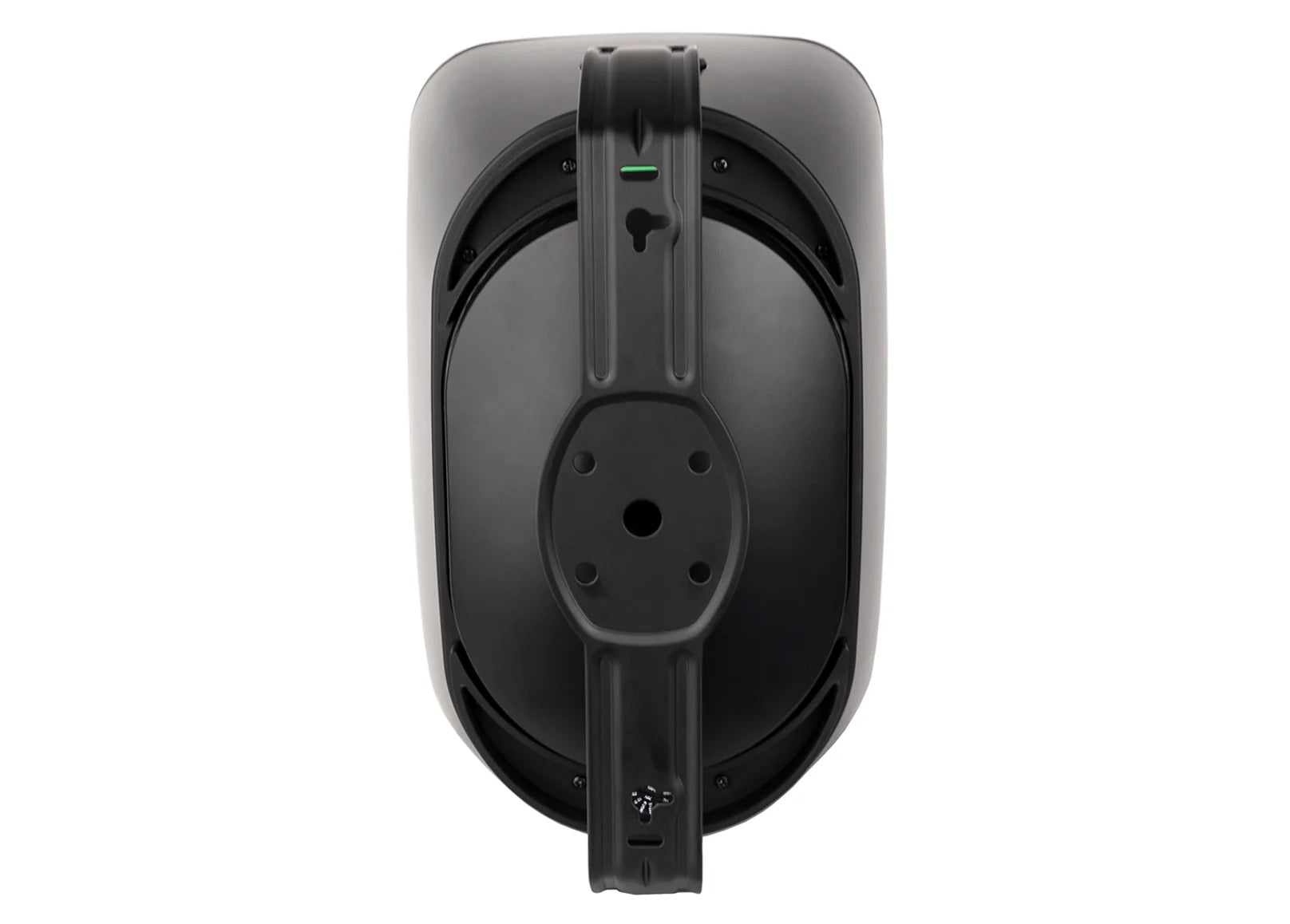

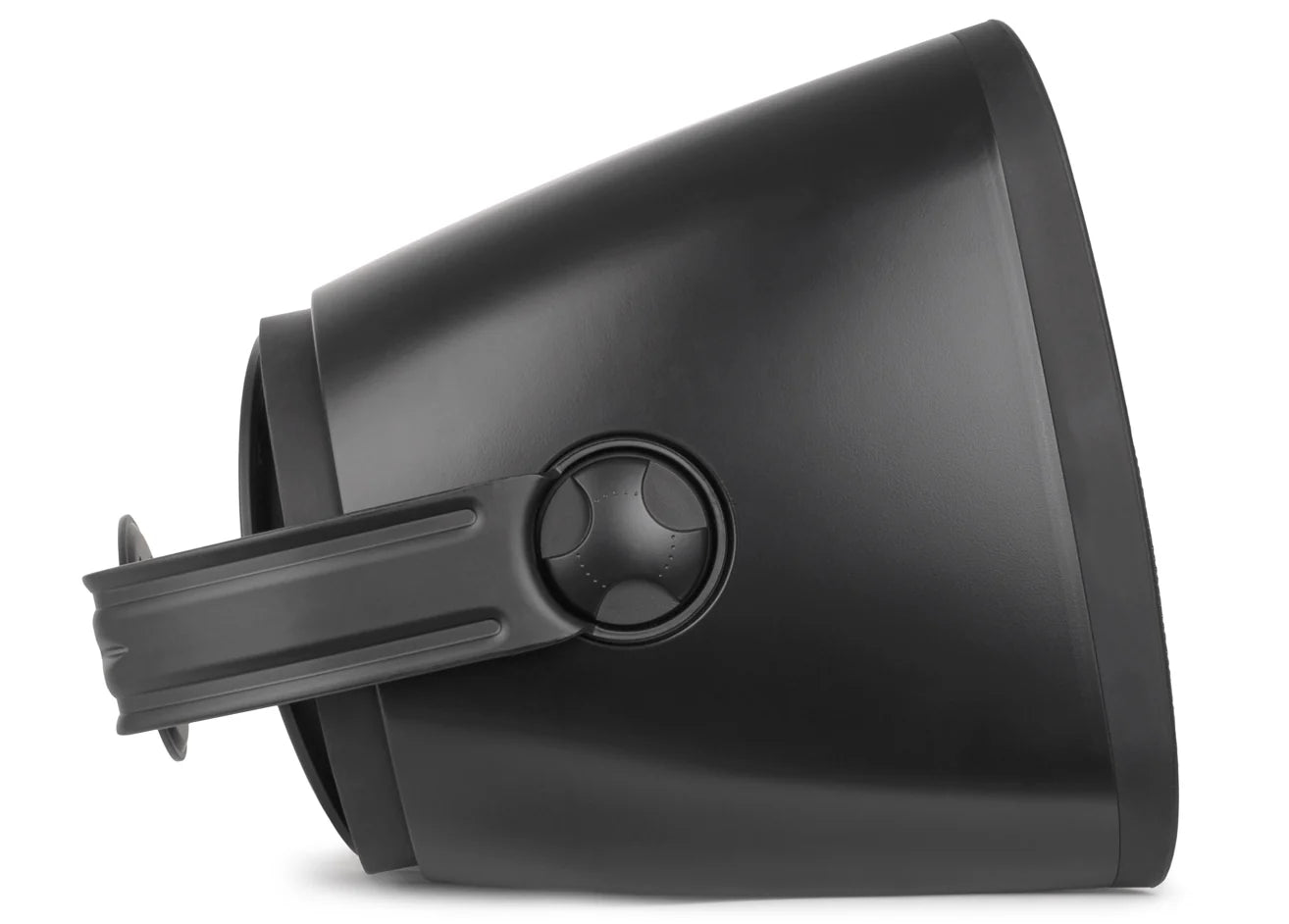

Flexible Surface Mounting

The included weather-resistant mounting bracket can be installed vertically or horizontally and provides aiming adjustment to help direct sound toward the intended listening area.

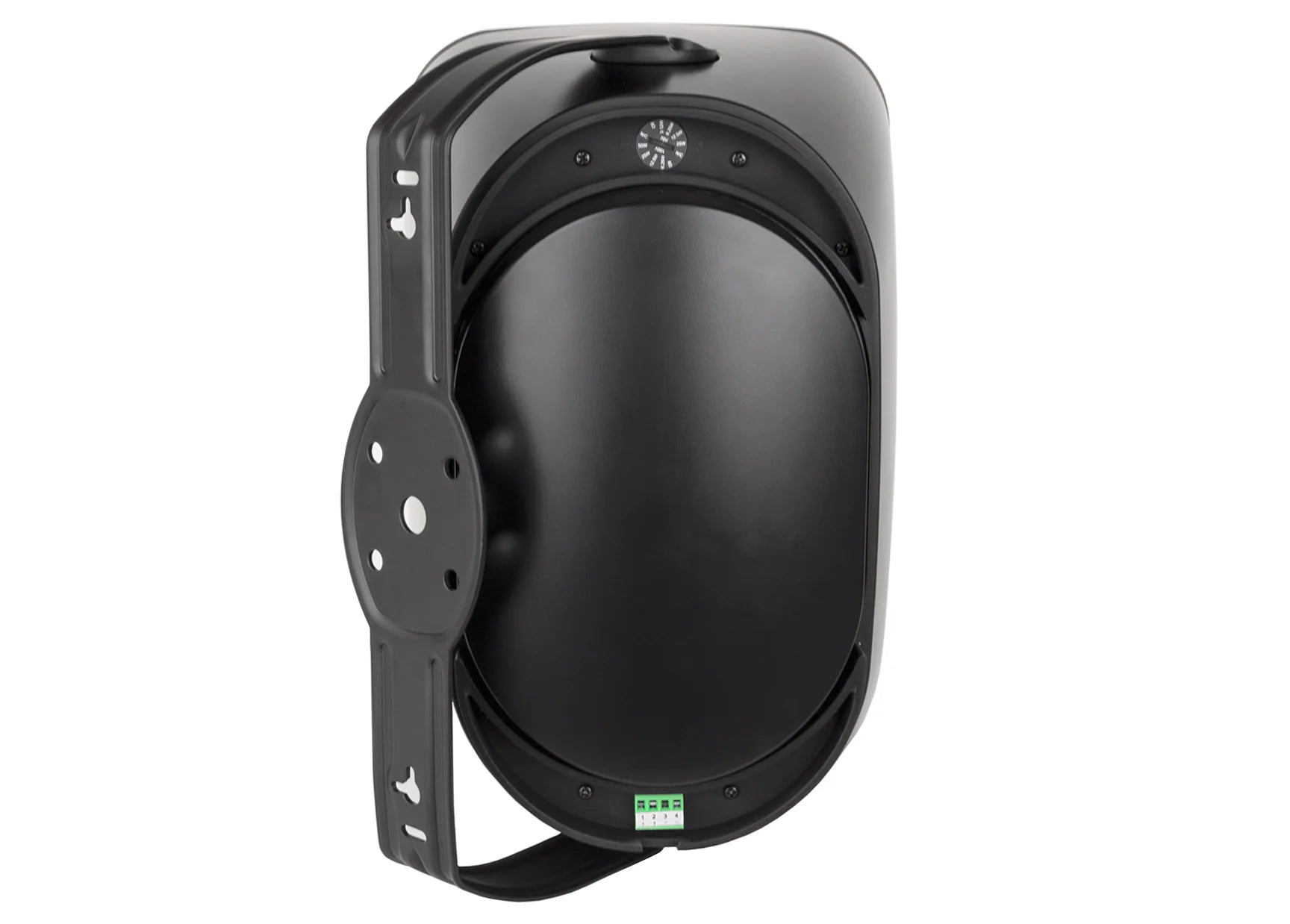

Protected Euroblock Connection

A 4-pin Euroblock screw terminal provides the speaker connection. The recessed rear connection area uses a protective cover and rubber seal to help maintain the speaker's weather resistance when properly installed.

Use appropriately rated speaker wire for the amplifier type, cable length, and installation environment.

Dimensions and Weight

• Height: 15" (381 mm)
• Width: 9.84" (250 mm)
• Depth: 9.84" (250 mm)
• Net weight: 11.16 lb (5.06 kg)

What's Included?

• 1 Pure Resonance Audio S8.1 speaker
• 1 surface-mount bracket

The amplifier, speaker wire, and additional mounting hardware are sold separately unless otherwise specified.

Complete Your Outdoor Audio System

• Pure Resonance Audio
• Outdoor & Weatherproof Speakers
• Speaker Wire

Need Help Matching the Amplifier?

Send Bear Security Shop your speaker quantity, cable lengths, amplifier model, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm tap settings, amplifier power, and wiring before you order.

Is the Pure Resonance Audio S8.1 sold individually or as a pair?

The S8.1 is sold individually.

Does the S8.1 work with 70V systems?

Yes. Available 70V taps are 3.12W, 6.25W, 12.5W, and 25W.

Does it support 100V systems?

Yes. Available 100V taps are 6.25W, 12.5W, 25W, and 50W.

Can the S8.1 be used with an 8-ohm amplifier?

Yes. It includes an 8-ohm bypass for compatible low-impedance amplifiers.

What is the power handling?

Pure Resonance Audio specifies 50W RMS and 150W peak power handling.

What drivers does the S8.1 use?

It uses an 8" graphite woofer and a 1.1" silk soft-dome tweeter.

What is the frequency response?

The specified frequency response is 60Hz–20kHz at ±10dB.

What is the coverage pattern?

The manufacturer specifies 81° horizontal × 87° vertical dispersion.

Is the S8.1 suitable for outdoor use?

Yes. The speaker is IP65 rated when the rear cover is installed and it is mounted correctly. It is not designed for submersion.

What type of connection does it use?

The S8.1 uses a 4-pin Euroblock screw terminal protected by a sealed rear cover.

Is the mounting bracket included?

Yes. One surface-mount bracket is included and supports vertical or horizontal installation with aiming adjustment.
