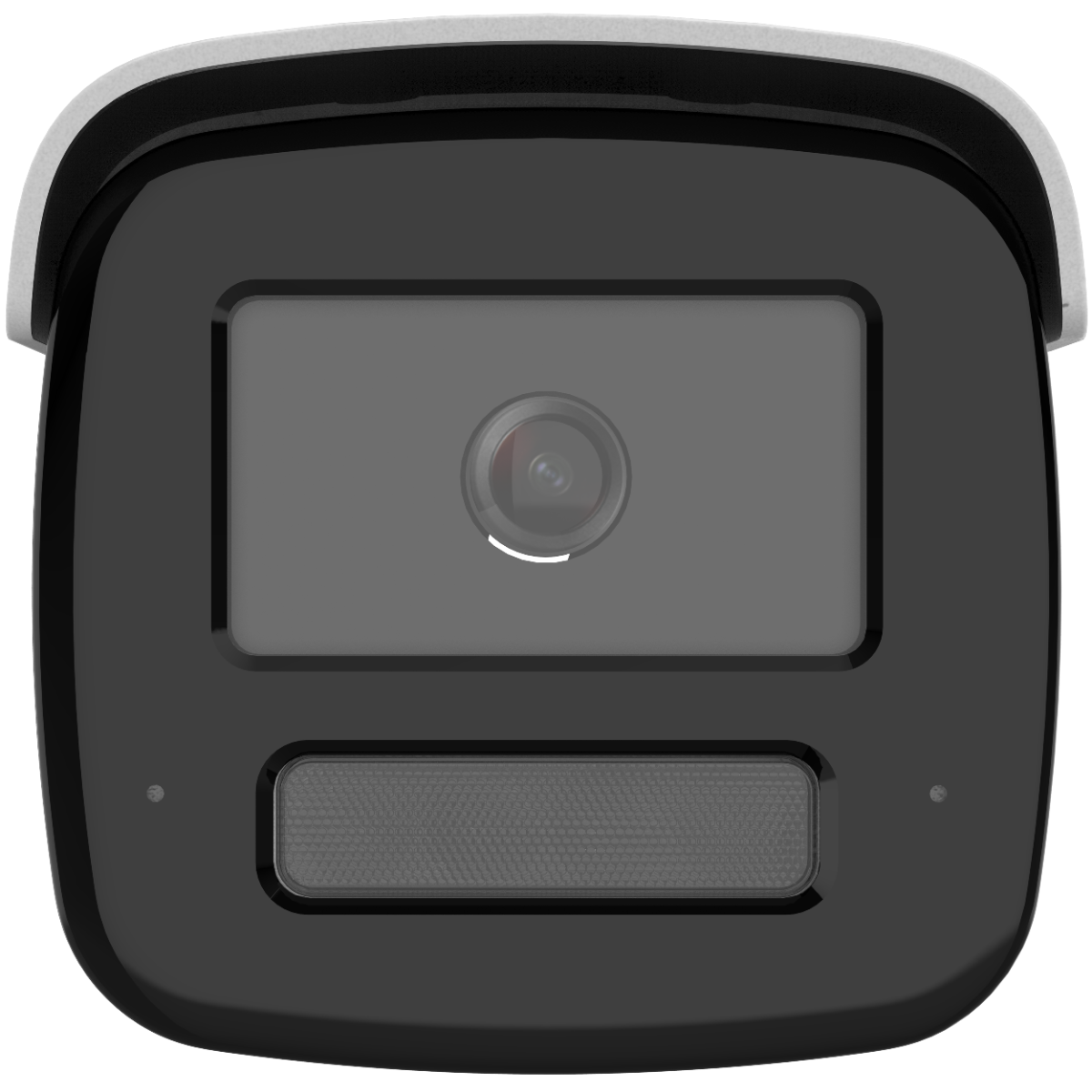

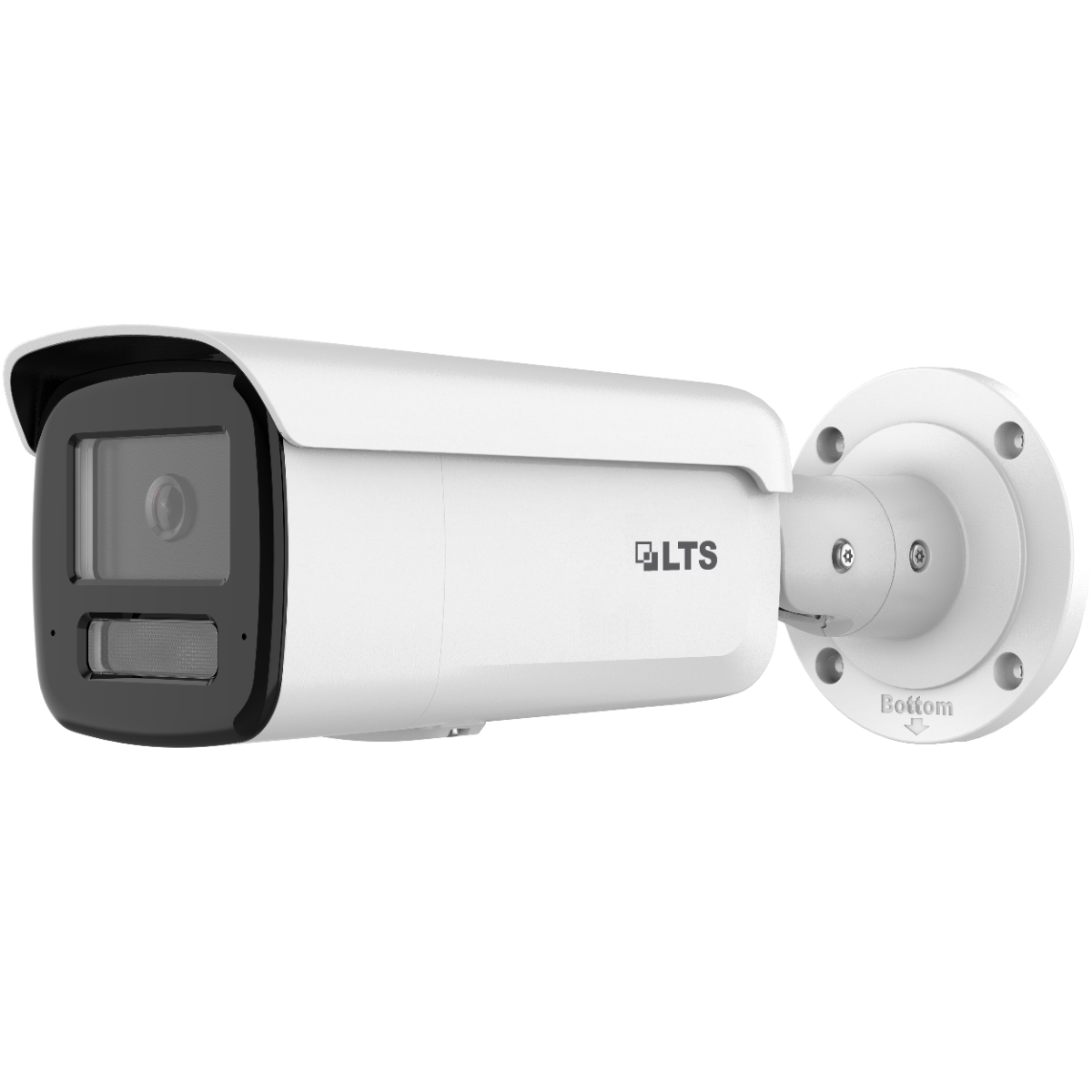

LTS LTCMIP9342WI-28SDL 4MP AI Active Deterrence Bullet Camera

Detect Important Activity and Respond with Active Deterrence

The LTS LTCMIP9342WI-28SDL is a 4MP bullet IP camera that combines human and vehicle classification with red/blue flashing lights, a built-in speaker, dual microphones, and Smart Hybrid Light for day and night monitoring.

4MP Image and Lens

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/2.9-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F1.6 aperture
• 101° horizontal field of view
• 57° vertical field of view
• 118° diagonal field of view
• 120dB True WDR
• BLC, HLC, and 3D DNR image enhancement

Long-Range Smart Hybrid Light

Smart Hybrid Light combines infrared and white supplemental illumination with three lighting modes for flexible nighttime monitoring.

• IR and white supplemental lighting
• Maximum illumination range: 196 ft / 60 m
• 850nm infrared wavelength
• Minimum color illumination: 0.005 lux at F1.6 with AGC on
• 0 lux with IR

Active Deterrence

• Red and blue flashing warning lights
• Built-in 2W speaker
• Maximum speaker sound pressure level: 120dB at 10 cm
• Human and vehicle-triggered event support

Human and Vehicle Detection

• Human and vehicle classification
• Motion detection with specified target filtering
• Line crossing detection
• Intrusion detection

Detection accuracy depends on camera placement, target size, lighting, scene conditions, and configuration.

Built-In Two-Way Audio

• Arrayed dual built-in microphones
• Environmental noise filtering
• Built-in speaker
• 1 line-level audio input
• 1 line-level audio output
• 1 alarm input and 1 alarm output

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• Up to three video streams under supported settings
• microSD/microSDHC/microSDXC support up to 512GB
• NAS and Auto Network Replenishment support
• ONVIF Profiles S and G
• RJ45 10/100 Ethernet
• LTS Connect, NVMS V3, and XVMS support

A compatible LTS NVR is recommended for the most complete support of recording, analytics, audio, alarms, and deterrence features. Advanced functions may vary with third-party ONVIF recorders.

Power Requirements

• PoE+: IEEE 802.3at, Class 4, maximum 18W
• Alternative power: 12V DC ±25%, maximum 17W

This is a wired Ethernet camera and does not include Wi-Fi. Make sure the connected NVR or PoE switch can supply 802.3at PoE+.

Outdoor Protection

• IP67 dust and water ingress protection
• Metal housing
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: 3.5 × 3.7 × 11.3 inches
• Metric dimensions: 88.7 × 93.1 × 286.7 mm
• Weight: approximately 2.5 lb
• Pan adjustment: 0° to 360°
• Tilt adjustment: 0° to 90°
• Rotation: 0° to 360°

LTS lists the LTB801 junction box, LTB378 vertical pole mount, and LTB379 corner mount as compatible accessories. Mounting accessories and microSD card are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE+ capacity, storage, and mounting accessories.

What resolution does the LTCMIP9342WI-28SDL support?

It supports up to 2688 × 1520 4MP resolution at 30 fps in a 60Hz configuration.

What lens does it use?

It uses a fixed 2.8mm F1.6 lens with a 101° horizontal field of view.

What makes this an active deterrence camera?

It includes red and blue flashing warning lights, a built-in speaker, dual microphones, and human/vehicle event detection.

Does it support two-way audio?

Yes. The camera includes dual built-in microphones and a built-in speaker, plus separate line-level audio input and output.

How far does the Smart Hybrid Light reach?

LTS specifies infrared and white supplemental illumination up to approximately 196 feet, or 60 meters.

Does it detect people and vehicles?

Yes. Deep-learning analytics support human and vehicle classification for motion, line-crossing, and intrusion events.

Is this a Color 24/7 camera?

This model uses an F1.6 lens with Smart Hybrid IR and white illumination. It should not be confused with LTS Color 24/7 models that use F1.0 optics.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

Yes when powered through Ethernet. LTS specifies IEEE 802.3at Class 4 PoE+ with maximum consumption of 18W.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Will it work with a third-party NVR?

It supports ONVIF Profiles S and G. Basic interoperability may be available, but analytics, audio, alarms, and active-deterrence functions can vary by recorder.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.

Which mounting accessories does LTS list?

LTS lists the LTB801 junction box, LTB378 vertical pole mount, and LTB379 corner mount.
