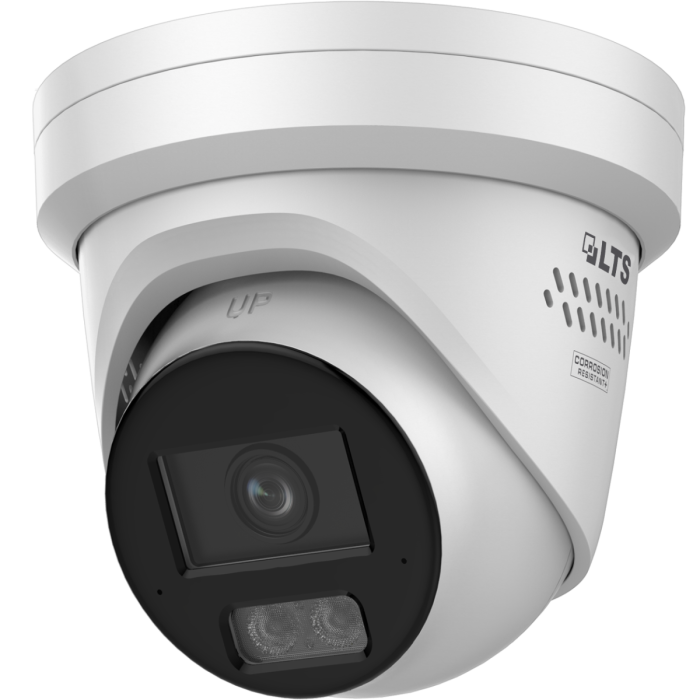

LTS LTCMIP3CD42WI-28LAISP 4MP AI Turret Camera Active Deterrent

See, Hear, and Act on Important Events

The LTS LTCMIP3CD42WI-28LAISP is a 4MP AI Color 24/7 turret IP camera with active deterrence. It combines human and vehicle analytics with red/blue strobe lights, an audible warning, dual microphones, and a built-in speaker for two-way audio.

4MP Color 24/7 Imaging

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed F1.0 lens
• 111.1° horizontal field of view
• 57.6° vertical and 138.5° diagonal field of view
• 130dB Wide Dynamic Range
• BLC, HLC, 3D DNR, distortion correction, defog, and EIS

Smart Hybrid Night Illumination

Smart Hybrid Light combines infrared and white supplemental lighting with three lighting modes. The specified illumination range is up to 98 feet.

• 850nm infrared illumination
• White supplemental light
• Up to 98 ft / 30 m illumination range
• Minimum color illumination: 0.0001 lux at F1.0

Active Deterrence

• Red and blue flashing strobe lights
• Built-in speaker for audible warning
• Human and vehicle-triggered event support
• Two-way audio through built-in microphones and speaker

The deterrence features can be linked to supported camera events, allowing the camera to provide a visible and audible response when configured conditions are triggered.

AI Detection and Smart Events

• Human and vehicle classification
• Motion detection with target filtering
• Line crossing detection
• Intrusion detection
• Region entrance and exiting detection
• Scene change detection
• Face capture

Detection performance depends on camera placement, target size, lighting, scene conditions, and configuration.

Audio, Alarm, and Storage

• Arrayed dual built-in microphones
• Built-in speaker up to 110dB at 10 cm
• One audio input and one audio output
• One alarm input and one alarm output
• microSD/microSDHC/microSDXC slot up to 512GB
• NAS storage support

The microSD card is sold separately. A compatible NVR is recommended for centralized recording and management.

Network and Recorder Compatibility

• RJ45 10/100 Ethernet
• ONVIF Profiles S, G, and T
• H.265+, H.265, H.264+, and H.264 compression
• Up to three video streams under supported settings
• LTS Connect, NVMS V3, and X-VMS support

For the most complete support of analytics, active deterrence, audio, and event functions, pair the camera with a compatible LTS NVR. Third-party ONVIF functionality can vary by recorder.

Power Requirements

• PoE+: IEEE 802.3at, Class 4, maximum 17W
• Alternative power: 12V DC ±25%, maximum 15.5W

This is a wired Ethernet camera. It does not include Wi-Fi. Make sure the connected PoE equipment can supply 802.3at PoE+ power.

Outdoor Protection

• IP67 dust and water ingress protection
• NEMA 4X anti-corrosion protection
• LTS anti-corrosion classification: Moderate Protection
• Metal cover and main body
• Operating range: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater use.

Dimensions and Compatible Mounts

• Dimensions: 5.4-inch diameter × 4.5 inches high
• Weight: approximately 1.8 lb
• LTB342-140 / LTB342-140B wall mounts
• LTB341 pendant mount
• LTB378 vertical pole mount
• LTB379 corner mount
• LTB701 / LTB701B junction box

Mounting accessories are sold separately.

Complete the System

• AI Color 24/7 cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm NVR compatibility, PoE+ capacity, storage, and mounting accessories.

What makes the LTCMIP3CD42WI-28LAISP an active deterrence camera?

It includes red and blue flashing strobe lights plus a built-in speaker that can provide an audible warning when supported events are triggered.

Does it support two-way audio?

Yes. It has arrayed dual microphones and a built-in speaker for two-way audio.

What resolution does it support?

It records up to 2688 × 1520 at 30 fps in a 60Hz configuration.

What lens does it use?

The -28LAISP model uses a fixed 2.8mm F1.0 lens with a 111.1° horizontal field of view.

Does it detect people and vehicles?

Yes. Its AI analytics support human and vehicle classification for motion and perimeter events.

Does it provide color video at night?

Yes. Color 24/7 imaging combines an F1.0 lens with Smart Hybrid IR and white supplemental lighting. Lighting range is specified up to 98 feet.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

If powered through Ethernet, yes. LTS specifies IEEE 802.3at Class 4 PoE+ with maximum consumption of 17W. It can alternatively use 12V DC.

Does it have Wi-Fi?

No. It is a wired Ethernet IP camera.

Will it work with a third-party NVR?

It supports ONVIF Profiles S, G, and T. Basic interoperability may be available, but active deterrence, analytics, audio, and event features can vary by recorder.

Is it waterproof?

It is IP67 rated for dust and water ingress protection. It is suitable for outdoor use but is not intended for permanent underwater installation.

What mounting accessories are compatible?

LTS lists LTB342-140 and LTB342-140B wall mounts, LTB341 pendant mount, LTB378 pole mount, LTB379 corner mount, and LTB701/LTB701B junction boxes.
