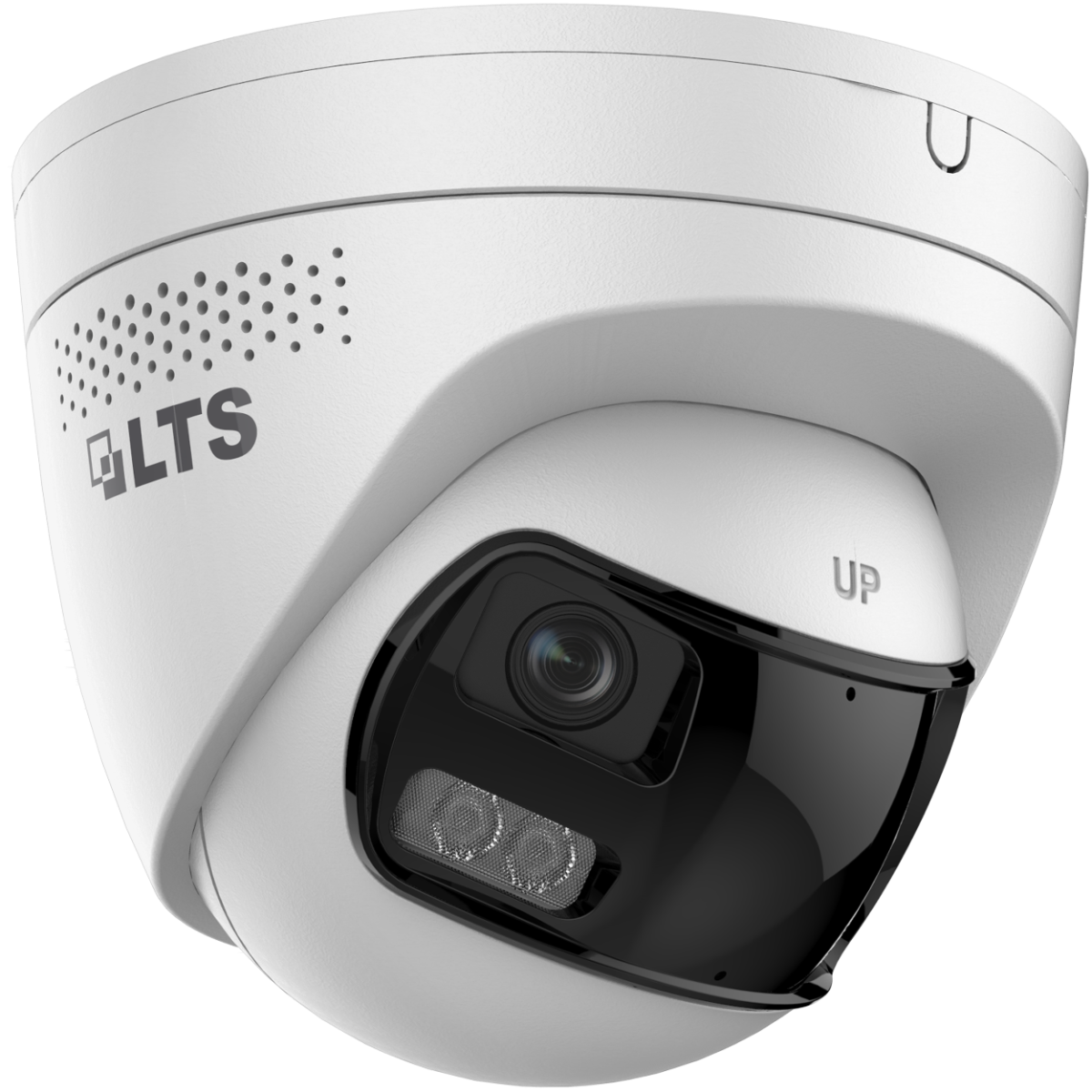

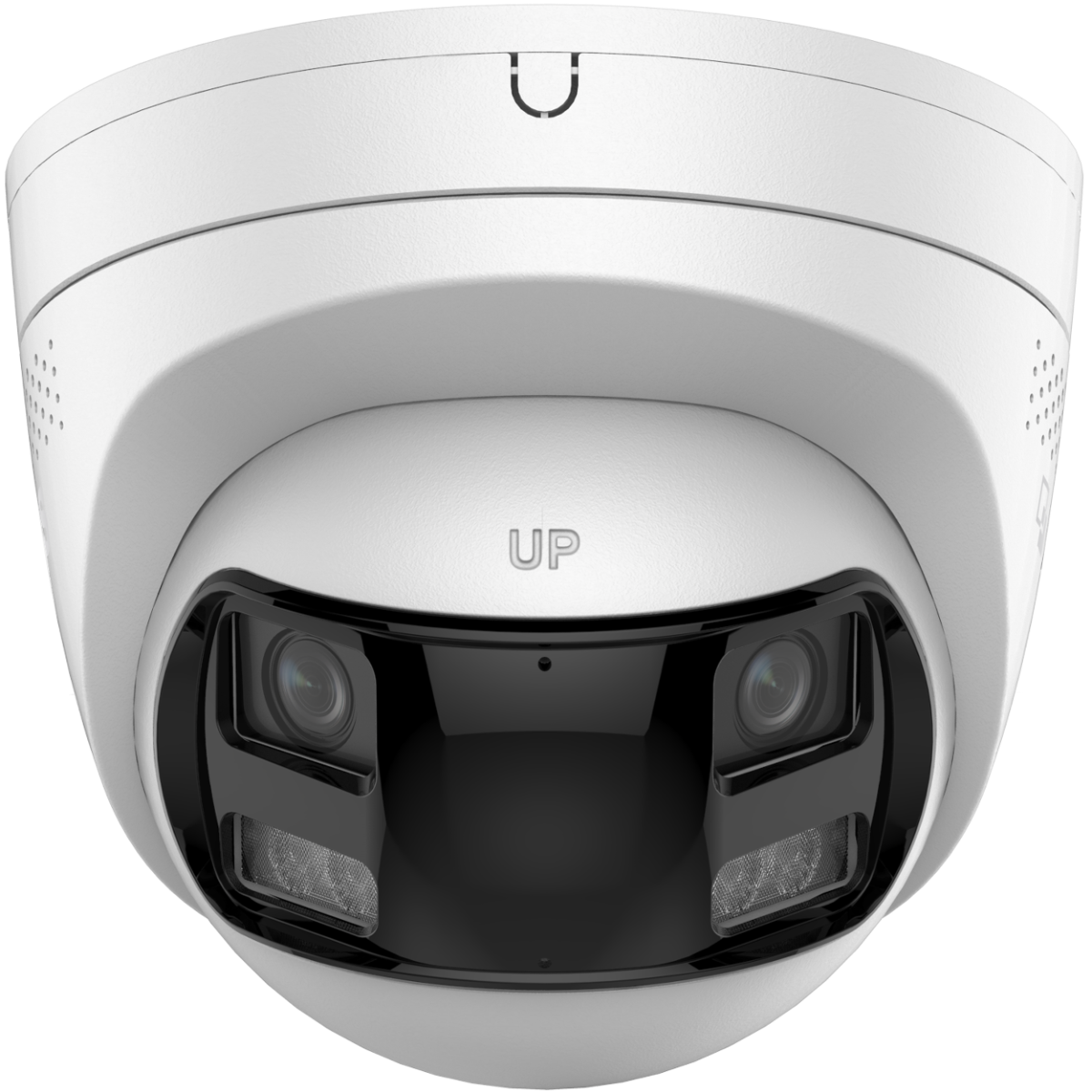

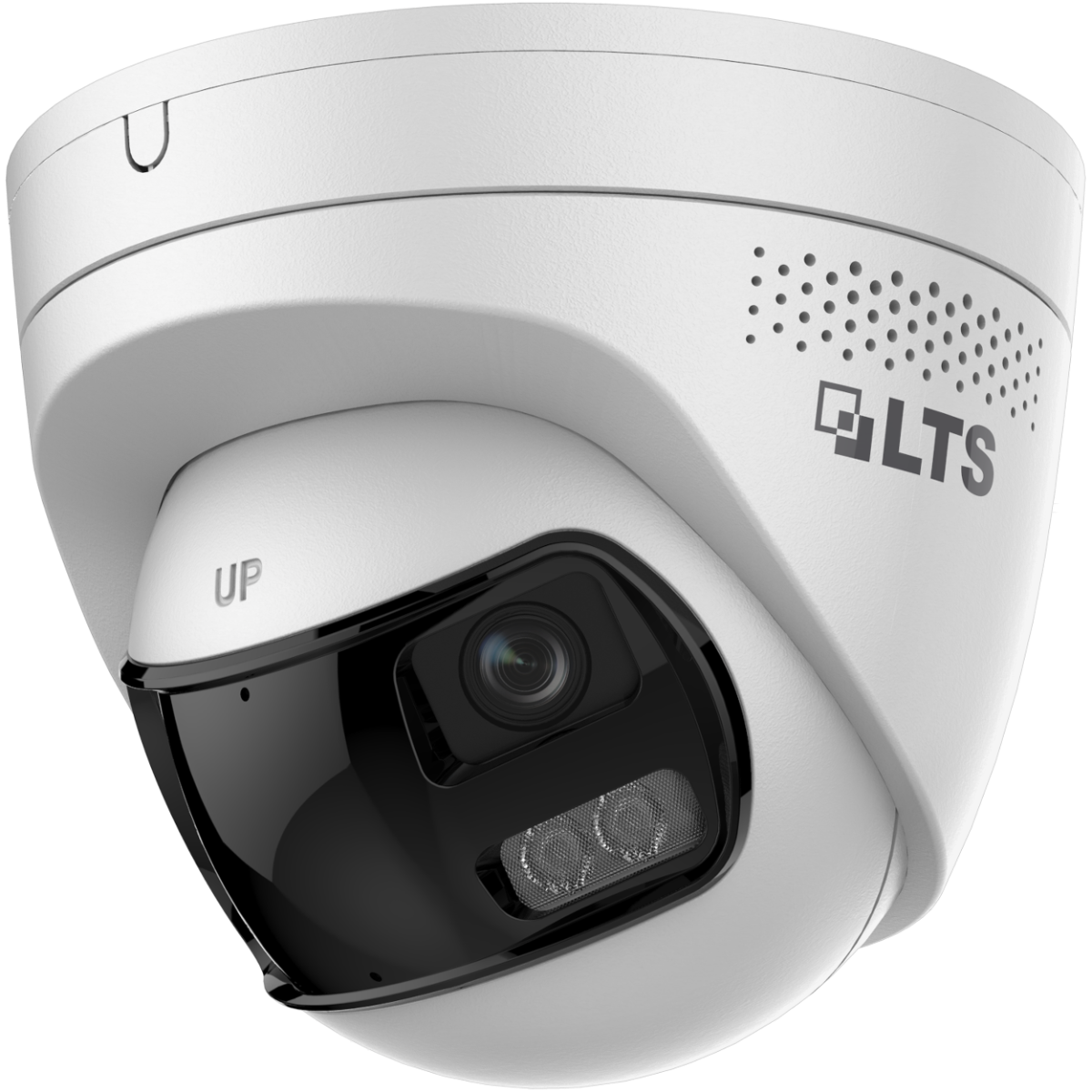

LTS LTCMIP398PW-2SDL 8MP Panoramic Active Turret Security Camera

Cover a Wide 180° Area and Respond to Important Events

The LTS LTCMIP398PW-2SDL is an 8MP panoramic active-deterrence turret IP camera designed for wide entrances, driveways, yards, storefronts, building fronts, and other areas where broad horizontal coverage is important.

8MP Panoramic Imaging

• Maximum resolution: 4256 × 1888
• Main stream: up to 20 fps at 4256 × 1888
• 1/2.4-inch Progressive Scan CMOS sensor
• 2mm fixed F1.6 lens
• 180° horizontal field of view
• 77° vertical field of view
• 120dB Wide Dynamic Range
• BLC, HLC, and 3D DNR image enhancement

Smart Hybrid Night Illumination

Smart Hybrid Light combines infrared and white supplemental illumination for nighttime monitoring.

• IR and white supplemental light
• Maximum illumination range: 98 ft / 30 m
• 850nm infrared wavelength
• Minimum color illumination: 0.005 lux at F1.6 with AGC on
• 0 lux with supplemental light

Active Deterrence

• Red and blue flashing warning lights
• Built-in speaker for audible warnings
• Human and vehicle-triggered motion events
• Configurable audible warning and strobe-light linkage

Human and Vehicle Detection

Motion detection can classify specified targets as human or vehicle, helping focus alerts on activity that matters. Detection performance depends on placement, target size, lighting, scene conditions, and configuration.

Built-In Two-Way Audio

• 1 built-in microphone
• Environmental noise filtering
• 1 built-in speaker
• Speaker output up to 97dB at 10 cm
• Two-way audio through compatible LTS software and recording systems

Recording and Network

• H.265+, H.265, H.264+, and H.264 main-stream compression
• microSD/microSDHC/microSDXC storage up to 512GB
• RJ45 10/100 Ethernet
• ONVIF Profiles S, T, and G
• NVMS V3, LTS Connect, and XVMS support
• Up to 6 simultaneous live-view connections

A compatible LTS NVR is recommended for the most complete integration of recording, alerts, two-way audio, and deterrence functions. Advanced features may vary with third-party ONVIF recorders.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 11.5W
• Alternative power: 12V DC ±25%, maximum 10W

This is a wired Ethernet camera and does not include Wi-Fi.

Outdoor Protection

• IP67 dust and water ingress protection
• Metal base with plastic cover
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: 5.1-inch diameter × 4.3 inches high
• Weight: approximately 1.3 lb
• Pan adjustment: 0° to 360°
• Tilt adjustment: 0° to 75°
• Rotation: 0° to 360°
• Compatible LTB342-140 wall mount
• Compatible LTB701 junction box

Mounting accessories, microSD card, NVR, network cable, and power equipment are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, installation location, camera quantity, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP398PW-2SDL support?

It records up to 4256 × 1888 at 20 fps.

How wide is the camera's field of view?

The fixed 2mm lens provides a 180° horizontal and 77° vertical field of view.

What makes this an active deterrence camera?

It includes red and blue flashing lights plus a built-in speaker that can provide audible warnings when configured events are triggered.

Does it detect people and vehicles?

Yes. Motion detection supports human and vehicle target classification.

Does it support two-way audio?

Yes. The camera includes one built-in microphone and one built-in speaker for compatible two-way audio operation.

How far does the night illumination reach?

LTS specifies Smart Hybrid IR and white supplemental lighting up to approximately 98 feet, or 30 meters.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

No. LTS specifies standard IEEE 802.3af Class 3 PoE with maximum consumption of 11.5W.

Does it have Wi-Fi?

No. It is a wired Ethernet IP camera.

Will it work with a third-party NVR?

It supports ONVIF Profiles S, T, and G. Basic interoperability may be available, but audio, deterrence, alerts, and other advanced features can vary by recorder.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.

Which mounting accessories does LTS list?

LTS lists the LTB342-140 wall mount and LTB701 junction box.
