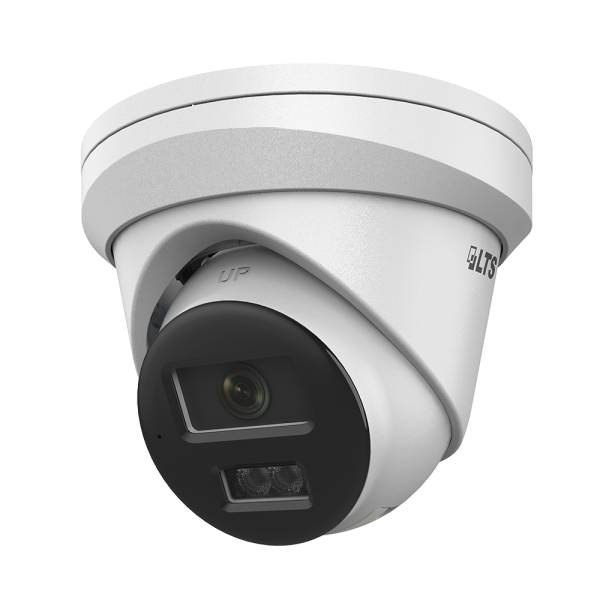

LTS LTCMIP1382WE-28MDA 8MP 4K Hybrid Light Turret Camera

Detailed 4K Coverage with Smart Hybrid Night Lighting

The LTS CMIP1382WE-28MDA is an 8MP turret IP camera designed for entrances, driveways, yards, garages, storefronts, walkways, and other areas where wide coverage and intelligent motion filtering are important.

8MP Image and Lens

• Maximum resolution: 3840 × 2160 at 15 fps
• 1/2.7-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F2.0 aperture
• 113° horizontal field of view
• 62° vertical field of view
• 134° diagonal field of view
• 120dB True WDR

Smart Hybrid Light

Smart Hybrid Light combines infrared and visible white supplemental lighting and can automatically switch between the two under supported settings.

• IR and white supplemental lighting
• Maximum illumination range: 98 ft / 30 m
• 850nm infrared wavelength
• Minimum color illumination: 0.01 lux at F2.0 with AGC on
• 0 lux with supplemental illumination

Human and Vehicle Detection

The camera supports human and vehicle classification to help focus motion events on more relevant activity. Detection performance depends on camera placement, target size, lighting, scene conditions, and configuration.

Built-In Audio

A built-in microphone provides ambient audio recording without requiring a separate microphone.

This model does not have a manufacturer-confirmed built-in speaker, so it should not be positioned as a two-way-talk camera.

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• microSD/microSDHC/microSDXC storage up to 512GB
• Wired Ethernet network connection

A compatible LTS NVR is recommended for centralized recording, playback, remote viewing, and system management. The microSD card is sold separately.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 6.5W
• Alternative power: 12V DC ±25%, maximum 5W

This is a wired IP camera and does not include Wi-Fi. It does not require PoE+.

Outdoor Protection

• IP67 dust and water ingress protection
• Metal housing

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions

• Dimensions: Ø4.33 × 3.66 inches
• Weight: approximately 0.85 lb / 385 g

Mounting accessories, microSD card, NVR, network cable, and other system components are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting requirements.

What resolution does the CMIP1382WE-28MDA support?

It records up to 3840 × 2160 8MP resolution at 15 fps.

What lens does it use?

It uses a fixed 2.8mm F2.0 lens with a 113° horizontal field of view.

How far does the Smart Hybrid Light reach?

LTS specifies infrared and white supplemental illumination up to approximately 98 feet, or 30 meters.

Does Smart Hybrid Light switch between IR and white light?

Yes. LTS describes Smart Hybrid Lighting as supporting automatic switching between infrared and visible supplemental lighting under supported settings.

Does it detect people and vehicles?

Yes. The camera supports human and vehicle detection to help filter supported motion events.

Does it record audio?

Yes. It includes a built-in microphone for ambient audio recording.

Does it support two-way audio?

No built-in speaker is specified by LTS for this exact model, so two-way talk should not be assumed.

Does it support a microSD card?

Yes. It supports microSD storage up to 512GB. The card is sold separately.

Does it require PoE+?

No. It uses standard IEEE 802.3af Class 3 PoE with maximum PoE consumption of 6.5W.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.
