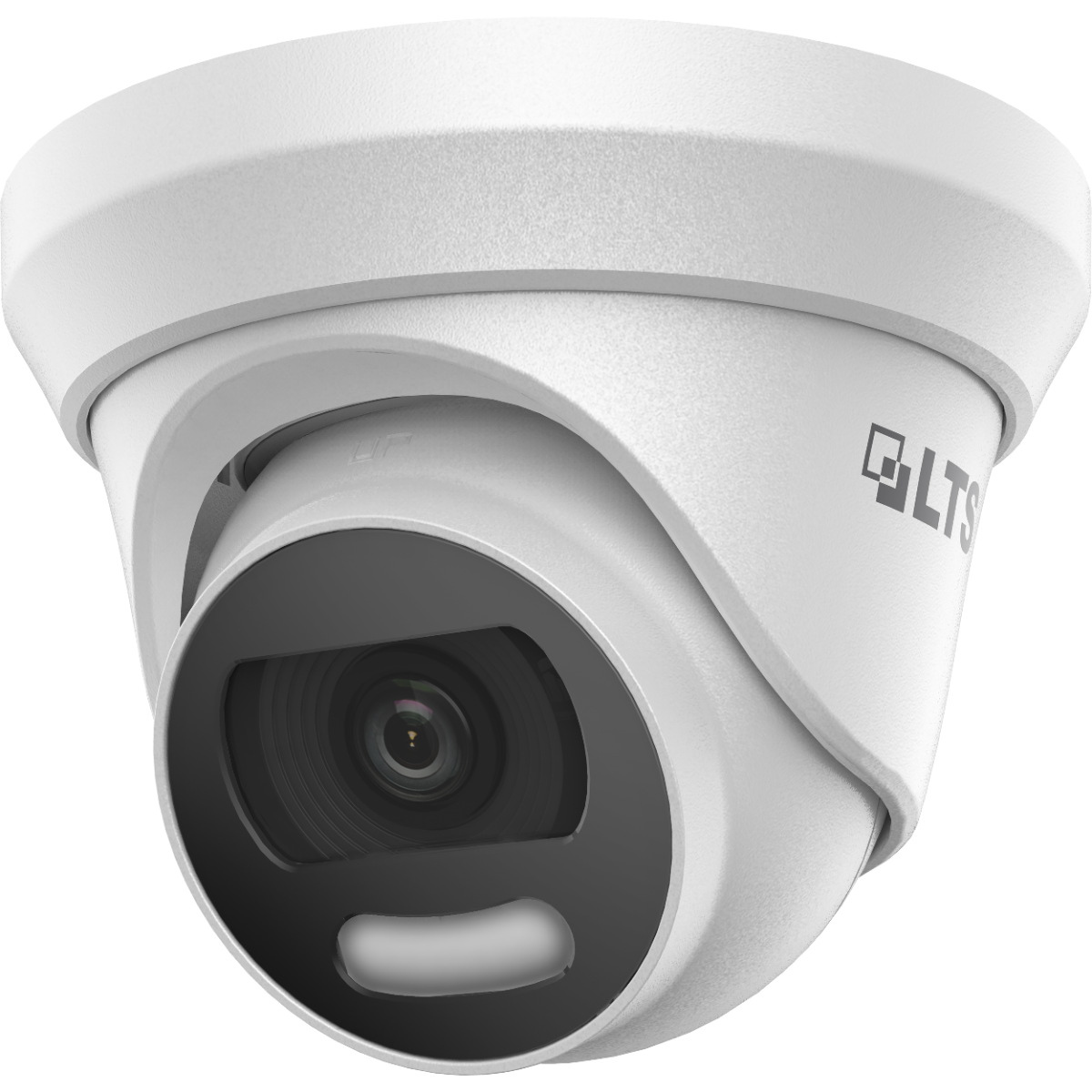

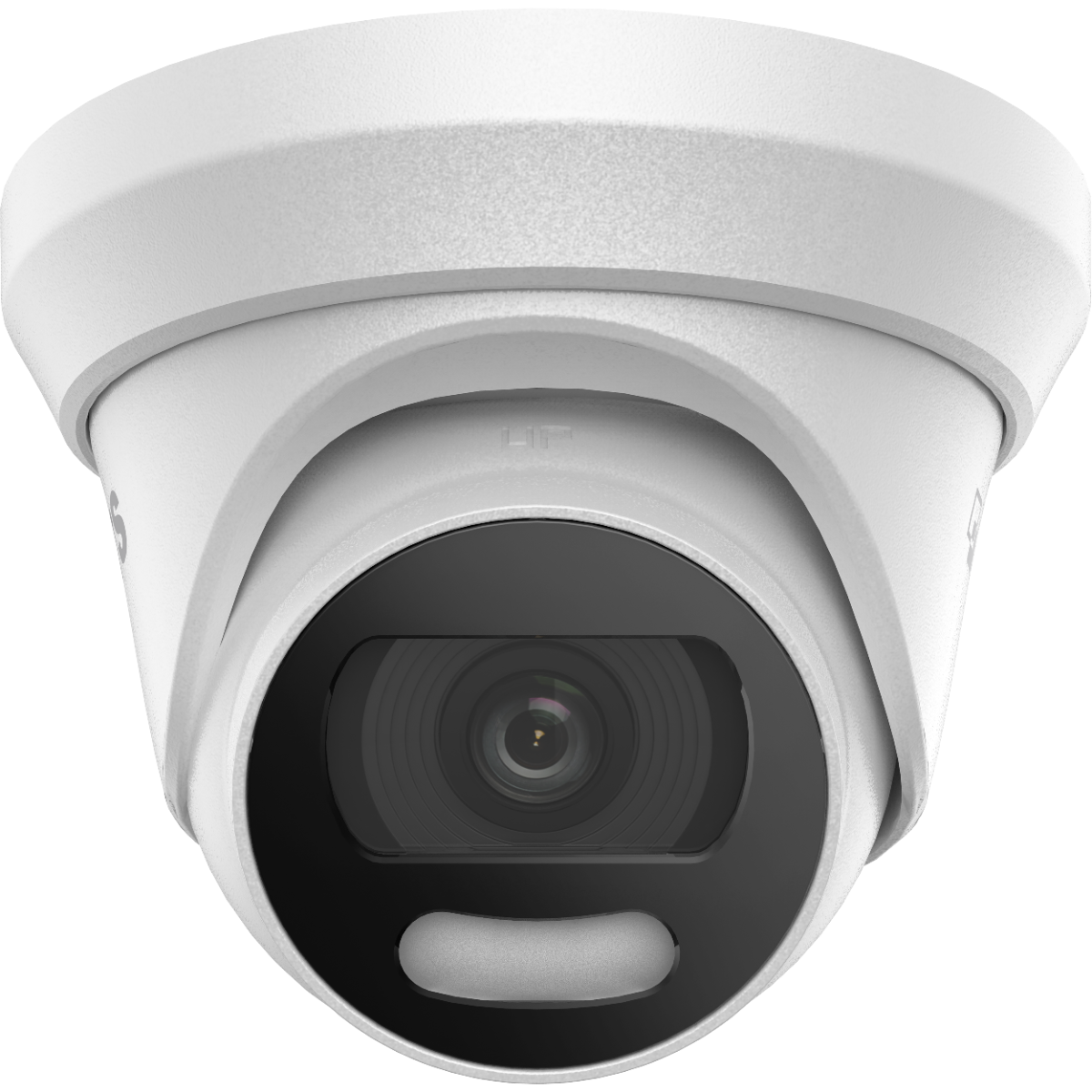

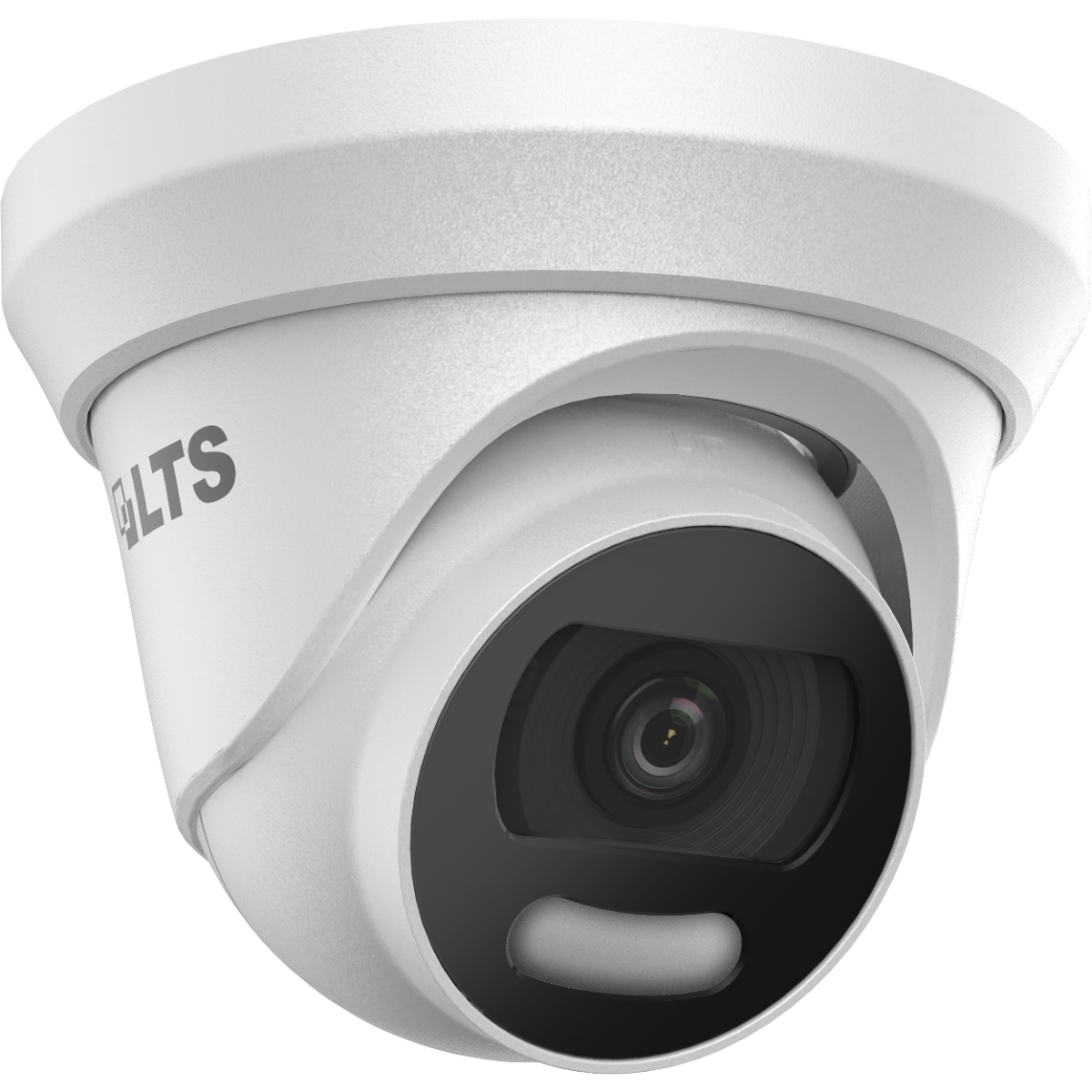

LTS LTCMHT1782-28LF 8MP 4K Smart Hybrid Light TVI Camera

A high-resolution 8MP HD-TVI turret camera built for detailed 4K monitoring, flexible nighttime illumination, and dependable indoor or outdoor surveillance.

The LTS CMHT1782-28LF delivers 3840 × 2160 video through a wide 2.8mm fixed lens, making it a strong upgrade for compatible coax-based security systems. Smart Hybrid Light combines discreet infrared monitoring with visible white illumination, helping provide clearer nighttime footage around entrances, driveways, stores, offices, and building exteriors.

Why installers choose this HD-TVI turret camera

• Captures detailed 8MP 4K video for improved identification and recorded footage review.
• The 2.8mm fixed lens provides broad coverage for entrances, rooms, yards, and walkways.
• Smart Hybrid Light provides flexible infrared and visible white-light monitoring.
• Infrared illumination reaches up to 131 feet for discreet nighttime surveillance.
• White-light illumination reaches up to 66 feet for brighter low-light scenes.
• Switchable 4-in-1 output supports compatible TVI, AHD, CVI, and CVBS systems.
• Provides a practical way to upgrade an existing coax installation to 4K resolution.
• The compact turret housing allows flexible positioning without an exposed camera arm.
• IP67 protection supports dependable operation in rain, dust, and outdoor conditions.

Best use cases

• Home entrances, garages, driveways, yards, gates, and exterior walkways.
• Retail storefronts, offices, stockrooms, hallways, and reception areas.
• Parking areas, loading zones, service entrances, and building perimeters.
• Existing coax systems that need a higher-resolution camera upgrade.
• Locations requiring broad fixed coverage rather than adjustable optical zoom.

Recommended with this product

• Pair it with a compatible DVR or video recorder that supports 8MP recording and the selected video format.
• Explore additional security cameras for complete coverage around your home or business.
• Browse the LTS collection for compatible cameras, recorders, and surveillance components.
• Use suitable security camera accessories to complete the coax, power, and mounting setup.

Quick guidance

Choose the CMHT1782-28LF when you want 4K detail while keeping an existing coax-based surveillance system. Its 2.8mm lens is best for broad coverage at short to moderate distances. Confirm that your DVR supports 8MP input, the selected TVI, AHD, CVI, or CVBS format, and Smart Hybrid Light control before ordering.

1. Which video formats does the CMHT1782-28LF support?
The camera has a switchable 4-in-1 output supporting TVI, AHD, CVI, and CVBS. The selected format must also be supported by the connected DVR.

2. How far can this camera see at night?
It provides infrared illumination up to 131 feet and visible white-light illumination up to 66 feet. Actual performance depends on the mounting position, environment, reflective surfaces, and camera settings.

3. Can the CMHT1782-28LF connect directly to an NVR?
No. This is a coax-based HD analog camera that requires a compatible DVR and an appropriate camera power connection. It does not connect directly to a standard IP network or PoE NVR.
