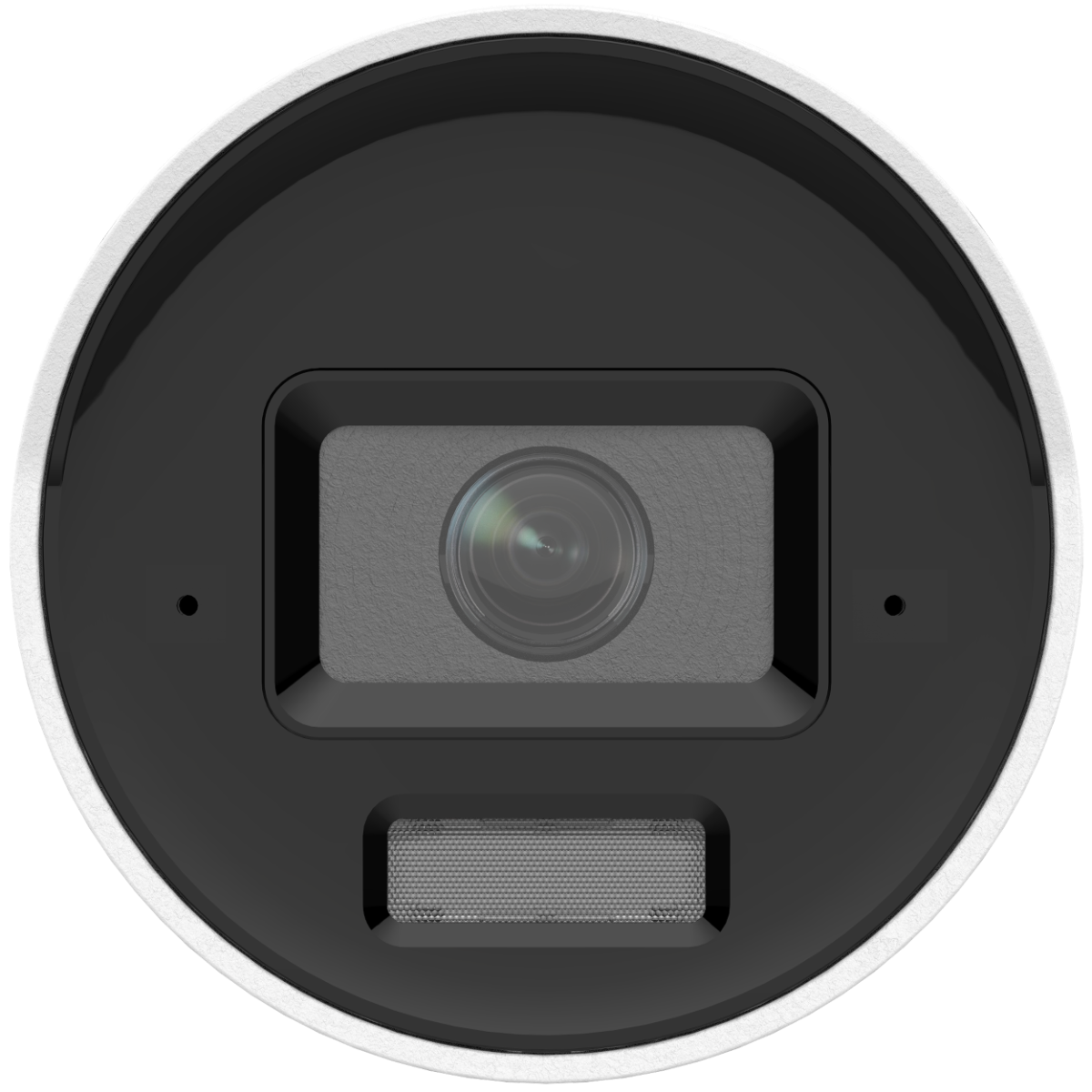

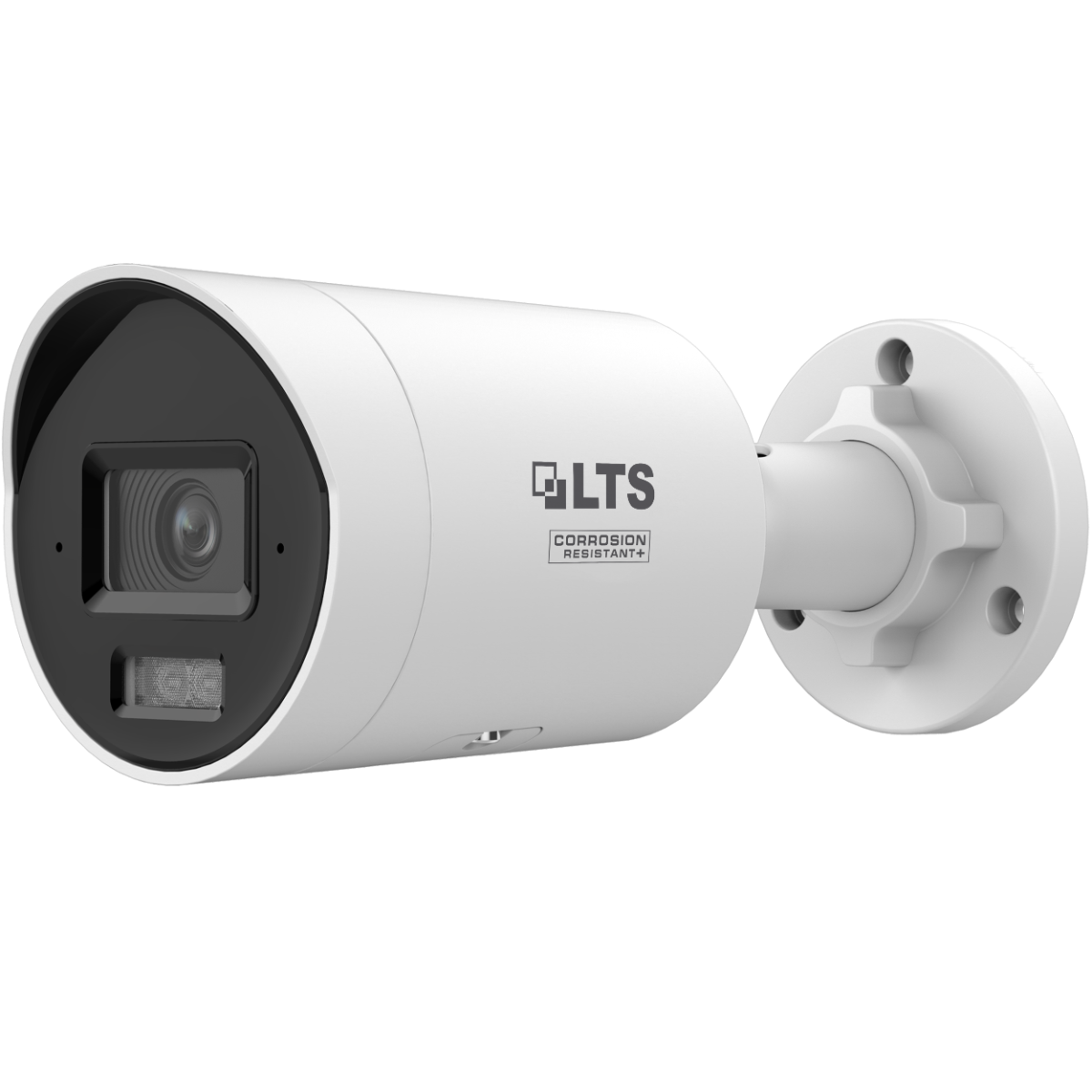

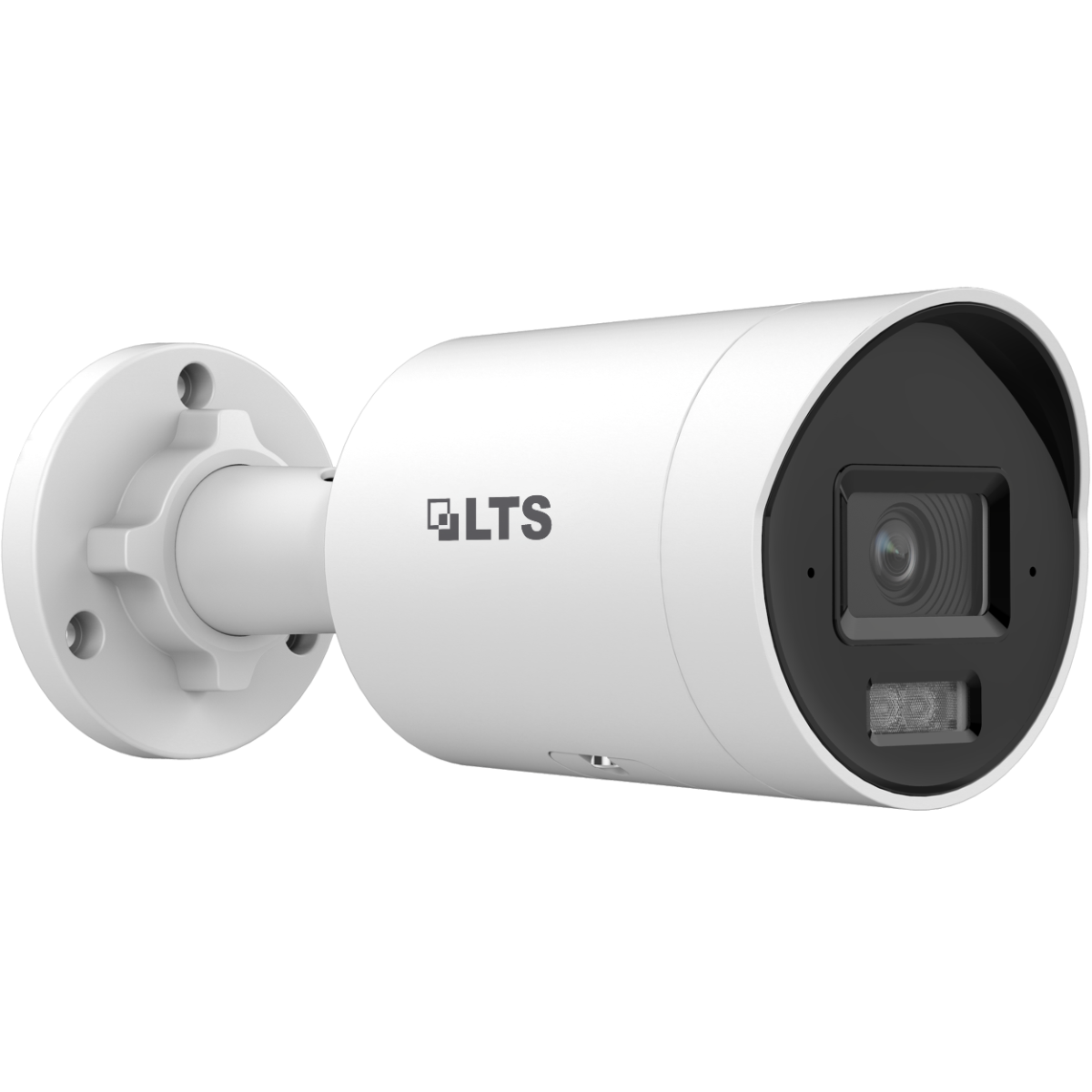

LTS CMIP8CD42WI-28AISP 4MP AI Color 24/7 Bullet Camera

Wide-Angle Color Monitoring Day and Night

The LTS CMIP8CD42WI-28AISP is a 4MP AI Color 24/7 bullet IP camera designed for driveways, entrances, yards, gates, parking areas, and building exteriors where wide coverage and strong low-light performance are important.

4MP Image and Lens

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F1.0 aperture
• 111.1° horizontal field of view
• 57.6° vertical field of view
• 138.5° diagonal field of view
• 130dB Wide Dynamic Range

Color 24/7 and Smart Hybrid Light

The F1.0 lens and AI image processing help preserve useful color detail in low-light scenes. Smart Hybrid Light combines infrared and white supplemental illumination with three lighting modes.

• IR and white supplemental lighting
• Maximum illumination range: 131 ft / 40 m
• 850nm infrared wavelength
• Minimum color illumination: 0.0001 lux at F1.0

Human and Vehicle Analytics

• Human and vehicle classification
• Line crossing detection
• Intrusion detection
• Face capture

Analytics performance depends on camera placement, target size, lighting, scene conditions, firmware, and recorder compatibility.

Built-In Audio

The camera includes an arrayed dual-microphone system for ambient audio recording.

This model does not have a manufacturer-confirmed built-in speaker. It should not be positioned as a two-way-talk or active-deterrence camera.

Local and NVR Recording

• microSD/microSDHC/microSDXC storage up to 512GB
• H.265+, H.265, H.264+, and H.264 compression
• Wired Ethernet network connection

A compatible LTS NVR is recommended for centralized recording, playback, remote viewing, and the most complete support of camera analytics. The microSD card is sold separately.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 6.5W
• Alternative 12V DC power: maximum 4.8W

This is a wired IP camera and does not include Wi-Fi. It does not require PoE+.

Outdoor Protection

• IP67 dust and water ingress protection
• NEMA 4X anti-corrosion design
• LTS anti-corrosion classification: Moderate Protection
• Metal front cover, body, and mounting bracket

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: Ø2.93 × 6.94 inches
• Metric dimensions: Ø74.4 × 176.3 mm
• Weight: approximately 1.2 lb / 530 g
• Compatible LTB345 junction box
• Compatible LTB378 vertical pole mount
• Compatible LTB379 corner mount

Mounting accessories, microSD card, NVR, network cable, and power equipment are sold separately.

Complete the System

• AI Color 24/7 cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the CMIP8CD42WI-28AISP support?

It records up to 2688 × 1520 4MP resolution at 30 fps.

What lens does it use?

It uses a fixed 2.8mm F1.0 lens with a 111.1° horizontal field of view.

How far does the Smart Hybrid Light reach?

LTS specifies infrared and white supplemental illumination up to approximately 131 feet, or 40 meters.

Does it provide color video at night?

It is designed for Color 24/7 imaging using an F1.0 lens and Smart Hybrid Light. Actual color performance depends on ambient lighting, scene conditions, and camera settings.

Does it detect people and vehicles?

Yes. The camera supports human and vehicle classification for supported smart events.

Does it support face capture?

Yes. LTS lists face capture as a supported feature.

Does it record audio?

Yes. It includes an arrayed dual-microphone system for ambient audio recording.

Does it support two-way audio?

A built-in speaker is not confirmed by the current LTS product documentation for this exact model, so two-way talk should not be assumed.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

No. LTS specifies standard IEEE 802.3af Class 3 PoE with maximum power consumption of 6.5W.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater installation.

Which mounting accessories are compatible?

LTS lists the LTB345 junction box, LTB378 vertical pole mount, and LTB379 corner mount.
