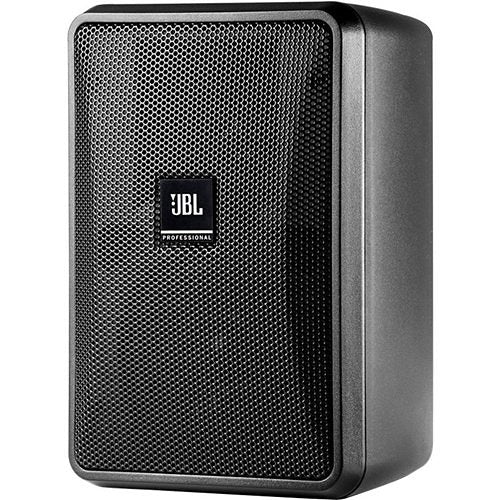

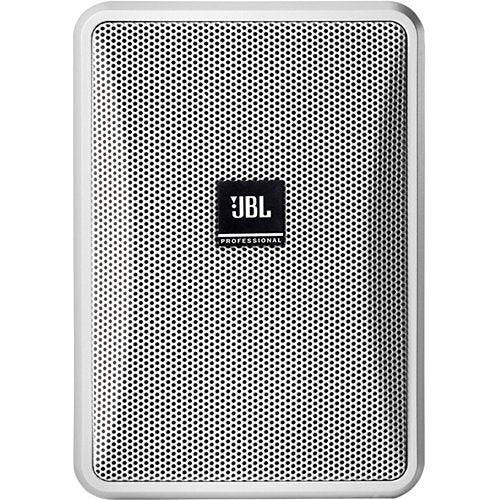

JBL Control 23-1 3 Inch Compact 2-Way Indoor Outdoor Speaker Pair

Compact JBL Sound for Indoor and Outdoor Spaces

The JBL Control 23-1 is an ultra-compact 2-way surface-mount loudspeaker designed for background music, foreground music, and paging in indoor or outdoor spaces. Sold as a pair, it is well suited to patios, restaurants, retail stores, hospitality areas, fitness spaces, educational facilities, and other locations where discreet speaker placement matters.

Each speaker combines a 3" woven-fiberglass low-frequency driver with a 0.5" PEI high-frequency driver and provides wide 100° × 100° coverage.

Key Specifications

• Product type: Passive 2-way indoor/outdoor surface-mount loudspeaker
• Sold as: Pair
• Low-frequency driver: 3" woven-fiberglass cone
• High-frequency driver: 0.5" PEI diaphragm tweeter with fluid cooling
• Continuous pink-noise power: 50W (2-hour rating)
• Continuous program power: 100W
• Peak capability: 200W
• Nominal impedance: 8 ohms in THRU mode
• Coverage: 100° horizontal × 100° vertical
• Sensitivity: 86dB at 1W/1m
• Maximum SPL: 103dB continuous / 109dB peak
• Frequency range: 70Hz–20kHz (-10dB)
• Frequency response: 95Hz–19kHz (±3dB)
• Transformer: Built-in 15W 70V/100V multi-tap transformer
• Environmental rating: IP44 standard

Who Should Choose the Control 23-1?

Choose the Control 23-1 when you need compact speakers that can blend into smaller indoor or outdoor spaces without sacrificing clear speech or music playback.

The combination of wide coverage, flexible mounting, 8-ohm operation, and built-in 70V/100V transformer support makes the Control 23-1 useful for both conventional amplifier systems and distributed-audio installations.

3-Inch Woven-Fiberglass Woofer

The Control 23-1 uses a 3" woven-fiberglass woofer with a pure butyl rubber surround and JBL Weather-Edge frame protection.

The low-frequency driver also uses a high-temperature Kapton voice-coil former and FEA-optimized motor structure to support consistent performance in compact installations.

0.5-Inch Fluid-Cooled Tweeter

A 0.5" PEI diaphragm tweeter handles the high frequencies. JBL uses ferro-magnetic fluid around the tweeter voice coil to improve cooling and durability.

50W Continuous / 100W Program Power

JBL specifies 50W continuous pink-noise power handling for 2 hours, 100W continuous program power, and 200W peak capability.

These are passive-speaker power ratings. The Control 23-1 requires a compatible external amplifier.

70V and 100V Distributed-Audio Operation

The built-in 15W transformer provides selectable taps for distributed-audio systems:

• 70V: 1.8W, 3.7W, 7.5W, or 15W
• 100V: 3.7W, 7.5W, or 15W

When using multiple speakers on a 70V or 100V amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

8-Ohm THRU Mode

The Control 23-1 can also bypass the transformer for direct 8-ohm operation with a compatible amplifier or AV receiver.

Confirm the total speaker load before connecting multiple speakers in low-impedance mode.

100° × 100° Coverage

JBL specifies 100° horizontal × 100° vertical coverage, helping distribute sound broadly across the listening area.

Actual coverage depends on mounting height, aiming, distance, room or outdoor acoustics, and background noise.

70Hz–20kHz Frequency Range

JBL specifies a 70Hz–20kHz frequency range at -10dB and a 95Hz–19kHz frequency response at ±3dB.

This makes the Control 23-1 suitable for spoken-word paging and general background or foreground music.

Included InvisiBall Mounting System

Each speaker includes JBL's InvisiBall wall-mounting system for compact, adjustable installation.

Optional accessories include the MTC-23UB-1 U-bracket and MTC-23CM ceiling-mount InvisiBall adapter for additional mounting flexibility.

Indoor/Outdoor Weather Resistance

The standard Control 23-1 is rated IP44 and is designed with a weather-resistant enclosure and transducers for suitable indoor and outdoor use.

For more demanding environments, JBL specifies IP55 performance when the speaker is used with the optional MTC-23WMG-1 WeatherMax grille and compatible MTC-PC2 or MTC-PC3 protective panel cover.

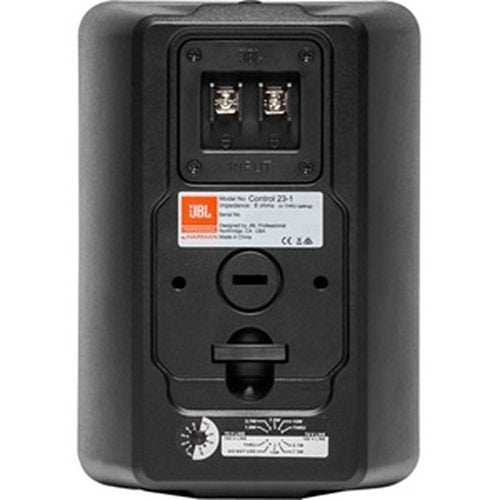

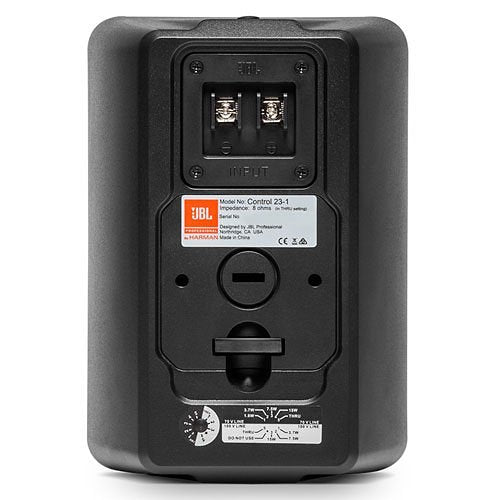

Screw-Terminal Connections

The Control 23-1 uses a screw-down terminal strip that accepts bare speaker wire up to 12 AWG or compatible open lugs.

Use appropriately rated speaker wire for the amplifier type, cable length, and installation environment.

Dimensions and Weight

• Height: 7.9" (200 mm)
• Width: 5.6" (141 mm)
• Depth: 4.4" (111 mm)
• Depth with InvisiBall mount: 5.6" (141 mm)
• Net weight: 4.0 lb (1.8 kg) each

What's Included?

• 2 JBL Control 23-1 loudspeakers
• InvisiBall wall-mounting hardware for each speaker
• 4 mm × 80 mm hex key

Amplifier, speaker wire, and optional weather-protection or alternative mounting accessories are sold separately.

Complete Your Audio System

• JBL Professional
• Outdoor Speakers
• Speaker Wire

Need Help Matching the Control 23-1?

Send Bear Security Shop your amplifier model, speaker quantity, mounting location, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm amplifier power, tap settings, and speaker placement.

Are the JBL Control 23-1 speakers sold as a pair?

Yes. The package includes two JBL Control 23-1 speakers.

What size drivers does the Control 23-1 use?

Each speaker uses a 3" woven-fiberglass low-frequency driver and a 0.5" PEI diaphragm tweeter with fluid cooling.

What is the power handling?

JBL specifies 50W continuous pink-noise power, 100W continuous program power, and 200W peak capability.

Does the Control 23-1 support 70V systems?

Yes. Available 70V taps are 1.8W, 3.7W, 7.5W, and 15W.

Does it support 100V systems?

Yes. Available 100V taps are 3.7W, 7.5W, and 15W.

Can I use the Control 23-1 with an 8-ohm amplifier or receiver?

Yes. The transformer can be bypassed using the THRU setting for direct 8-ohm operation with a compatible amplifier.

What is the coverage pattern?

JBL specifies 100° horizontal × 100° vertical coverage.

What is the frequency response?

JBL specifies 95Hz–19kHz at ±3dB, with a broader 70Hz–20kHz frequency range at -10dB.

What is the sensitivity?

The Control 23-1 is rated at 86dB sensitivity at 1W/1m.

What is the maximum SPL?

JBL specifies approximately 103dB continuous and 109dB peak SPL at 1 meter.

Can the Control 23-1 be used outdoors?

Yes. The standard speaker is IP44 rated for suitable outdoor use. Optional JBL WeatherMax accessories can increase protection to IP55 for more demanding environments.

Are wall mounts included?

Yes. JBL's InvisiBall wall-mounting system is included with the speakers.

Does the Control 23-1 require an external amplifier?

Yes. It is a passive loudspeaker and requires a compatible 70V, 100V, or low-impedance amplifier.
