Episode Terrain ES-TERRAIN-HSUB-4.1 Patio 4 Inch Speakers Sub Kit

Full Outdoor Sound Without Burying the Subwoofer

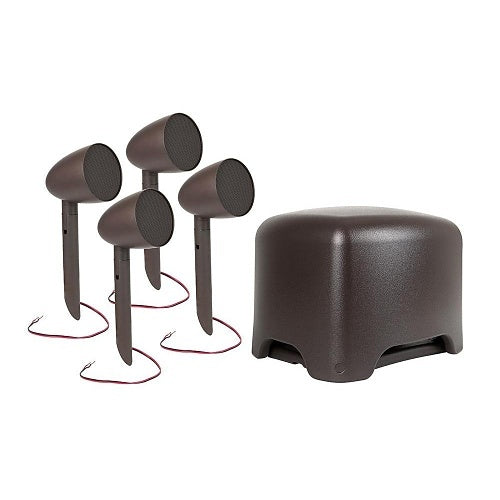

The Episode ES-TERRAIN-HSUB-4.1 combines four 4-inch landscape satellite speakers with one 8-inch dual-voice-coil hardscape subwoofer for patios, decks, gardens, pool areas, and other outdoor listening spaces.

The hardscape subwoofer mounts above ground on a suitable solid surface, making this kit a good alternative when an underground burial subwoofer is not practical.

What Is Included

• Four 4-inch satellite speakers
• Four ground stakes
• One 8-inch dual-voice-coil hardscape subwoofer
• Hardscape subwoofer base plate
• 1.6-foot four-conductor wire attached to the subwoofer
• Stake installation end cap
• Silicone-filled weatherized wire connectors

System Specifications

• Nominal impedance: 8 ohms per channel in the supplied 4.1 configuration
• Power handling: 100W RMS per channel
• System frequency response: 35 Hz to 20 kHz, ±3 dB
• Satellite woofer: 4-inch polypropylene cone
• Satellite tweeter: 3/4-inch aluminum dome
• Satellite crossover: 125 Hz
• Subwoofer: 8-inch polypropylene cone with dual 1.5-inch voice coils
• Color: Dark brown

Amplifier Requirements

This is a passive speaker system and requires a separate stereo or multi-channel amplifier. In the supplied 4.1 configuration, the system presents an 8-ohm nominal load per channel and is rated for 100W RMS per channel.

This is not a 70V or 100V system. Bluetooth, Wi-Fi, streaming, and app control depend on the separately purchased amplifier or audio source.

Placement and Wiring

Place the satellite speakers evenly around the listening area, generally about 6 to 8 feet apart, and aim them toward the center of the space. Positioning the hardscape subwoofer near a wall or other reflective surface can increase perceived bass output.

Use outdoor-rated direct-burial speaker wire:

• Up to 100 ft: 16 AWG or larger
• Up to 200 ft: 14 AWG or larger
• Up to 300 ft: 12 AWG or larger

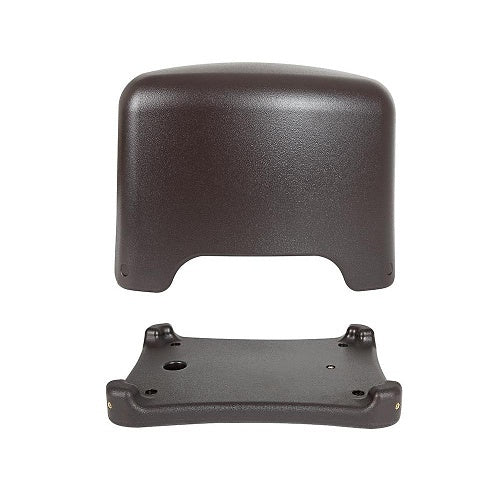

The hardscape subwoofer mounts to a solid surface using its base plate. Use suitable fasteners for the specific mounting surface.

Outdoor Use

The system is designed for outdoor use, but placement still matters. Avoid aiming the satellite speakers more than 45 degrees upward and keep them out of direct sprinkler streams. The hardscape subwoofer is rated IPX5 and is designed to withstand normal outdoor moisture exposure, but it should not be submerged.

Dimensions

• Satellite without stake: 5.63 × 5.4 × 7.6 inches
• Satellite with stake: 17.83 × 5.4 × 7.6 inches
• Hardscape subwoofer: 11.87 × 15.87 × 12.86 inches
• Complete system weight: 28 lb
• Manufacturer limited lifetime warranty

Expanding the System

The Terrain system can be expanded with additional satellite speakers or another subwoofer. Expansion changes the amplifier load, so amplifier compatibility must be confirmed before moving beyond the supplied 4.1 configuration.

The manufacturer's 3,000-square-foot coverage specification refers to an expanded system using eight satellite speakers, not automatically to this four-speaker kit.

Complete the System

• Amplifiers
• Speaker wire
• Outdoor speakers
• Episode products

Need Help Confirming Compatibility?

Send Bear Security Shop your amplifier model, outdoor-area dimensions, cable-run lengths, and planned speaker locations. We can help confirm amplifier compatibility and the right system layout.

What is included with the ES-TERRAIN-HSUB-4.1?

The kit includes four 4-inch satellite speakers with ground stakes, one 8-inch hardscape subwoofer, its base plate, weatherized wire connectors, and installation accessories.

Does this kit require an amplifier?

Yes. It is a passive system requiring a separate stereo or multi-channel amplifier compatible with an 8-ohm load.

How much power can the system handle?

The supplied 4.1 system is rated at 100W RMS per channel.

Is the hardscape subwoofer powered?

No. It is a passive dual-voice-coil subwoofer and is powered by the same compatible amplifier system.

Does it support 70V or 100V?

No. The supplied 4.1 configuration is a conventional low-impedance 8-ohm-per-channel system.

Does it have Bluetooth or Wi-Fi?

No. The speakers are passive. Bluetooth, Wi-Fi, streaming, and app control depend on the separate amplifier or source you choose.

Does the hardscape subwoofer need to be buried?

No. It is designed to sit above ground and mount to a suitable hard surface using its base plate.

Is the system waterproof?

It is designed for outdoor use, but it should not be described as permanently waterproof. Avoid direct sprinkler streams on the satellites, and do not submerge the hardscape subwoofer.

Does this 4.1 kit cover 3,000 square feet?

Not necessarily. Episode's 3,000-square-foot specification applies to an expanded system using eight satellite speakers. Coverage from the included four speakers depends on the layout and listening requirements.

Can the system be expanded?

Yes. Additional Terrain satellites or another subwoofer can be added, but expansion changes the nominal amplifier load and should be planned accordingly.
